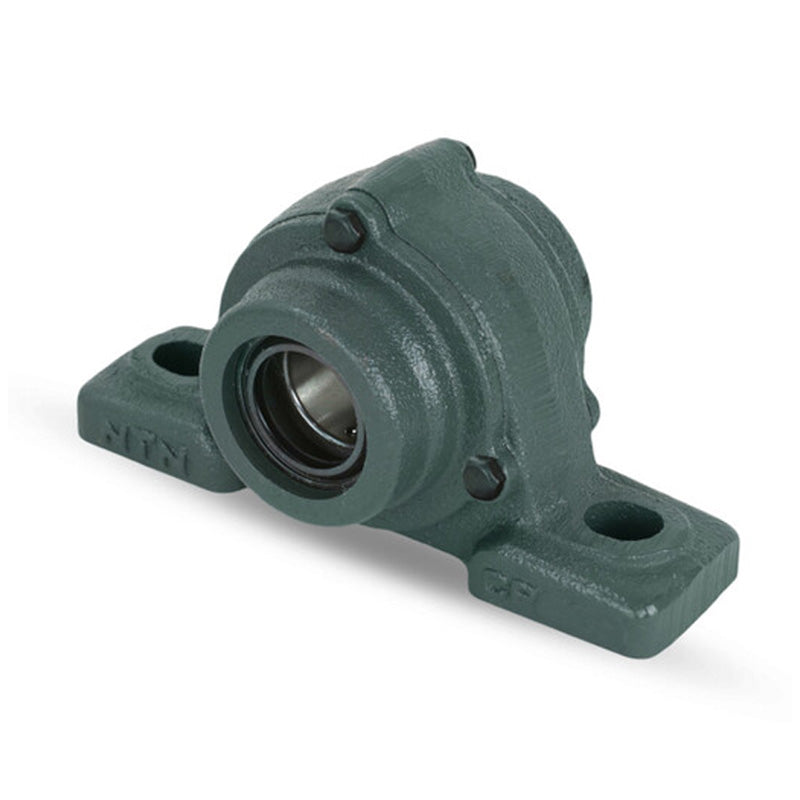

NTN C-UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€129,84
ex VAT
Regular price
Sale price
€129,84
ex VAT
In stock
Price Break
3+
€98,67
4+
€93,13
9+
€92,02
19+
€90,91
49+
€89,80
99+
€88,70
499+
€83,15
999+
€82,04
1999+
€80,94
2999+
€79,83
4999+
€77,61
Quantity
Couldn't load pickup availability
Description
Description
UCP200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCP
- Bolt Hole Centres:
- 203mm
Technical
Technical

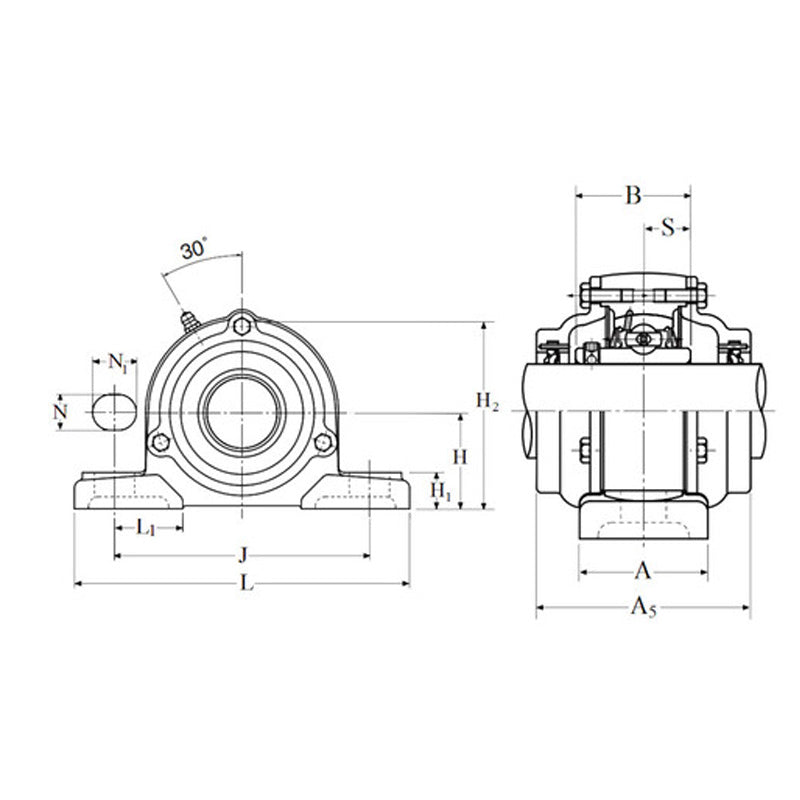

| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| H | 76.2mm |
| L | 265mm |
| J | 203mm |
| A | 70mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 151mm |
| L<sub>1</sub> | 77mm |
| B | 65.1mm |
| S | 25.4mm |
| H<sub>3</sub> | 155mm |
| A<sub>5</sub> | 120mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 7.2 kg |
