SKU: C-UCT320-315D1-NTN

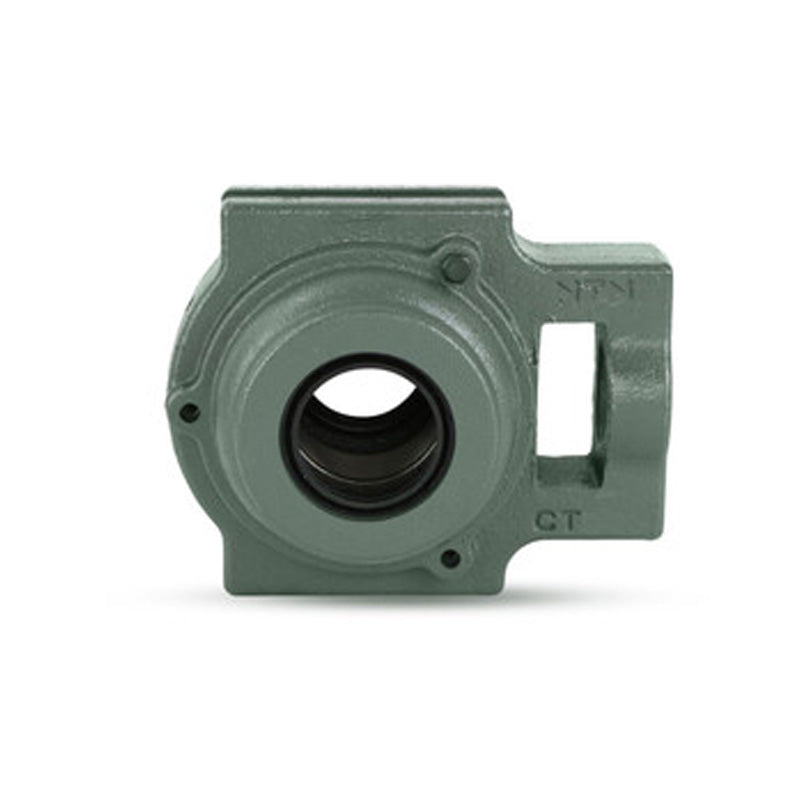

NTN C-UCT320-315D1 Imperial Cast Iron Take Up Unit with 3-15/16 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT320-315D1 Imperial Cast Iron Take Up Unit with 3-15/16 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-15/16 inch |
| N<sub>1</sub> | 1-7/8 inch |
| L<sub>2</sub> | 1-11/32 inch |
| H<sub>2</sub> | 6-7/8 inch |
| N<sub>2</sub> | 4-17/32 inch |
| N | 2-5/16 inch |
| L<sub>3</sub> | 7-7/8 inch |
| A<sub>1</sub> | 1.378 inch |
| H<sub>1</sub> | 10-15/64 inch |
| H | 11-13/32 inch |
| L | 13-19/32 inch |
| A<sub>2</sub> | 2-15/16 inch |
| A | 4-23/32 inch |
| r | 5-5/16 inch |
| L<sub>1</sub> | 8-9/32 inch |
| B | 4.252 inch |
| S | 1.654 inch |
| L<sub>4</sub> | 13-25/32 inch |
| A<sub>5</sub> | 7-15/32 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 192 kN |
| Static load C<sub>0r</sub> | 141 kN |
| Fatigue load limit C<sub>u</sub> | 8.75 kN |
| --- | Unit information |
| Mass | 84 lbs |
