SKU: C-UKT311AD1/HA2311-NTN

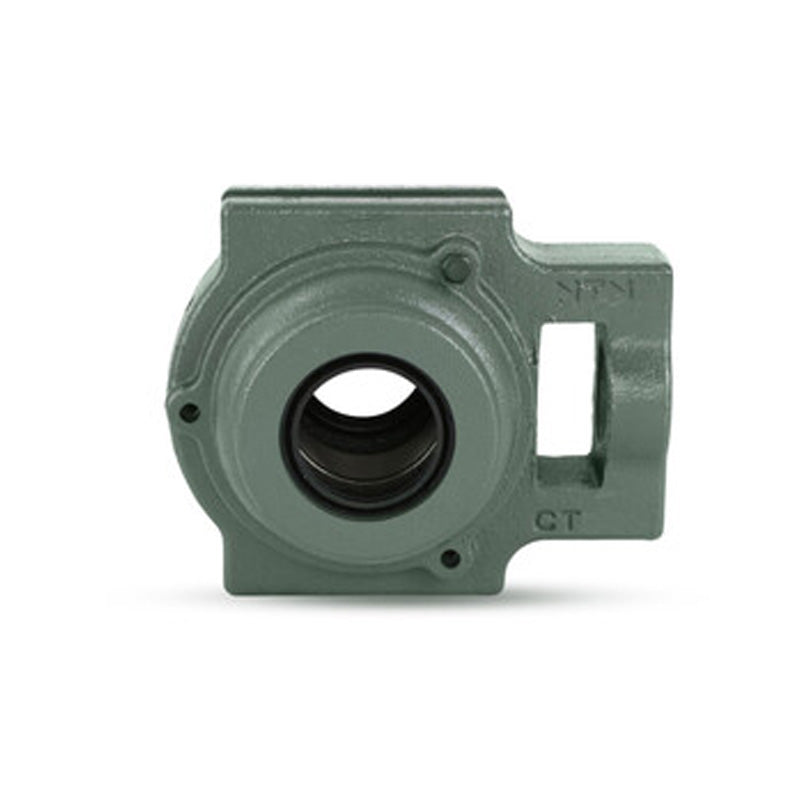

NTN C-UKT311AD1/HA2311 Imperial Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 1-15/16 inch Shaft - Allow 2-3 Days
NTN C-UKT311AD1/HA2311 Imperial Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 1-15/16 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 1-15/16 inch |
|---|---|
| N<sub>1</sub> | 1-5/32 inch |
| L<sub>2</sub> | 29/32 inch |
| H<sub>2</sub> | 4-1/8 inch |
| N<sub>2</sub> | 2-19/32 inch |
| N | 1-17/32 inch |
| L<sub>3</sub> | 4-17/32 inch |
| A<sub>1</sub> | 0.866 inch |
| H<sub>1</sub> | 5-29/32 inch |
| H | 6-13/32 inch |
| A<sub>2</sub> | 1-23/32 inch |
| A | 2-19/32 inch |
| r | 3-5/32 inch |
| L<sub>1</sub> | 5 inch |
| B<sub>1</sub> | 2.323 inch |
| L<sub>4</sub> | 8-5/16 inch |
| A<sub>5</sub> | 4-29/32 inch |
| Mass | 19 lbs |
