• SKF C4028K30V Carb Toroidal Roller Bearing with Taper Bore 140x210x69mm Allow 7-10 Days
1 1

SKU: C4028K30V-SKF

SKF C4028K30V Carb Toroidal Roller Bearing with Taper Bore 140x210x69mm Allow 7-10 Days

SKF C4028K30V Carb Toroidal Roller Bearing with Taper Bore 140x210x69mm Allow 7-10 Days
€1.567,57 ex VAT
€1.567,57 ex VAT
Sale Sold out

In stock

Price Break
10+ €1.191,28
19+ €1.124,35
29+ €1.110,97
39+ €1.097,58
49+ €1.084,20
74+ €1.070,81
99+ €1.003,89
199+ €990,50
249+ €977,12
499+ €963,73
999+ €936,96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

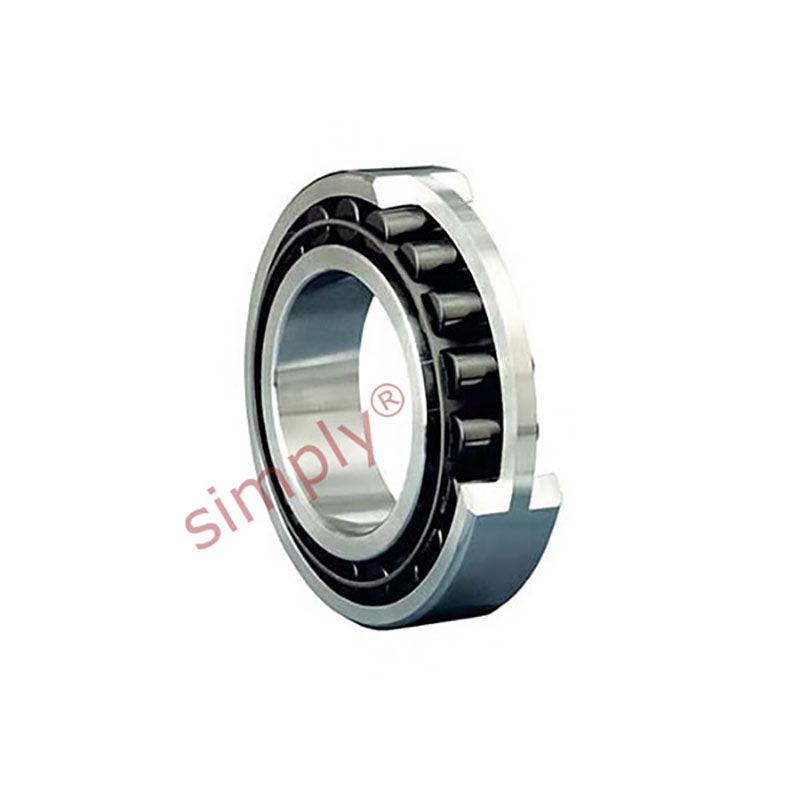

SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
140mm
Outside Diameter:
210mm
Width:
69mm
Seals / Shields:
None
Technical
--- Dimensions
d 140mm
D 210mm
B 69mm
d2 161mm
D1 193mm
r1r2 min 2mm
s1 11.4mm
s2 5.9mm
da min 149mm
da max 175mm
Da max 201mm
ra max 2mm
--- Speeds and Loads
Dynamic load C 750 kN
Static load Co 1220 kN
Fatigue load limit Pu 118 kN
Limiting speed 800 rpm
--- Factors
Misalignment factor k1 0.115
Operating clearance factor k2 0.097
--- Weights
Weight 8.55 kg
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH24028+sleeve>AH24028</a>
