• SNR CES202 Metric Flatback Grooved Parallel Outer Bearing Insert 15mm Bore 40mm Outside Diameter with Eccentric Collar
1 1

SKU: CES202-SNR

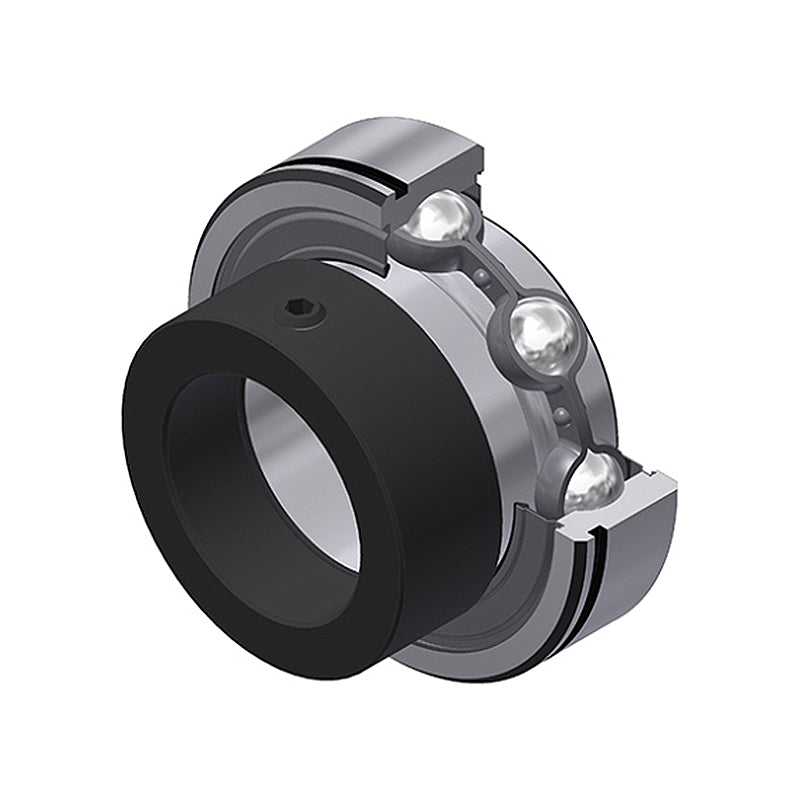

SNR CES202 Metric Flatback Grooved Parallel Outer Bearing Insert 15mm Bore 40mm Outside Diameter with Eccentric Collar

SNR CES202 Metric Flatback Grooved Parallel Outer Bearing Insert 15mm Bore 40mm Outside Diameter with Eccentric Collar
€14,78 ex VAT
€14,78 ex VAT
Sale Sold out

Equivalent to: CSA202

In stock

Price Break
3+ €11,24
5+ €10,60
9+ €10,48
19+ €10,35
49+ €10,23
74+ €10,10
99+ €9,47
199+ €9,34
249+ €9,22
499+ €9,09
999+ €8,84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IG953VLNXP
Brand / Quality:
SNR - High Quality
Thread Size:
M6x1
Inside Diameter:
15mm
Outside Diameter:
40mm
Width:
28.6mm
Style:
CES
Technical
d 15mm
D 40mm
C 12mm
B 19.1mm
B1 28.6mm
B2 13.5mm
d1 28.6mm
S 6.5mm
a 1.98mm
b 1.35mm
N1 38.1mm
m 5mm
r min 0.6mm
G M6x1
Wrench Size 3mm
Set screw torque 5.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 9.6kN
Static load rating C0 4.8kN
Weight 0.1kg
