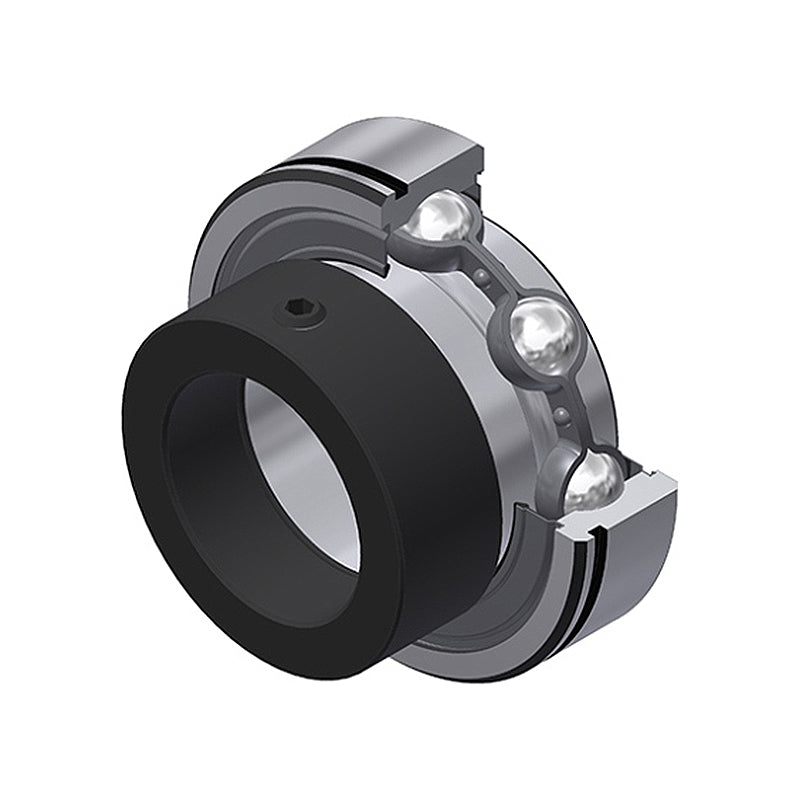

• SNR CES206-18 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter with Eccentric Collar
1 1

SKU: CES206-18-SNR

SNR CES206-18 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter with Eccentric Collar

SNR CES206-18 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter with Eccentric Collar
€23,66 ex VAT
€23,66 ex VAT
Sale Sold out

Equivalent to: CSA206-18

In stock

Price Break
3+ €17,98
5+ €16,97
9+ €16,77
19+ €16,56
49+ €16,36
74+ €16,16
99+ €15,15
199+ €14,95
249+ €14,75
499+ €14,54
999+ €14,14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IG953VLNXP
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
28.575mm = 1.125 (1-1/8) inch
Outside Diameter:
62mm
Width:
35.7mm
Style:
CES
Technical
d 1-1/8 inch
d 28.575mm
D 62mm
C 16mm
B 23.8mm
B1 35.7mm
B2 15.9mm
d1 44.5mm
S 8mm
a 3.18mm
b 1.9mm
N1 59.61mm
m 6mm
r min 1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 19.5kN
Static load rating C0 11.2kN
Weight 0.4kg
