SKU: CL10M6x40-CHI

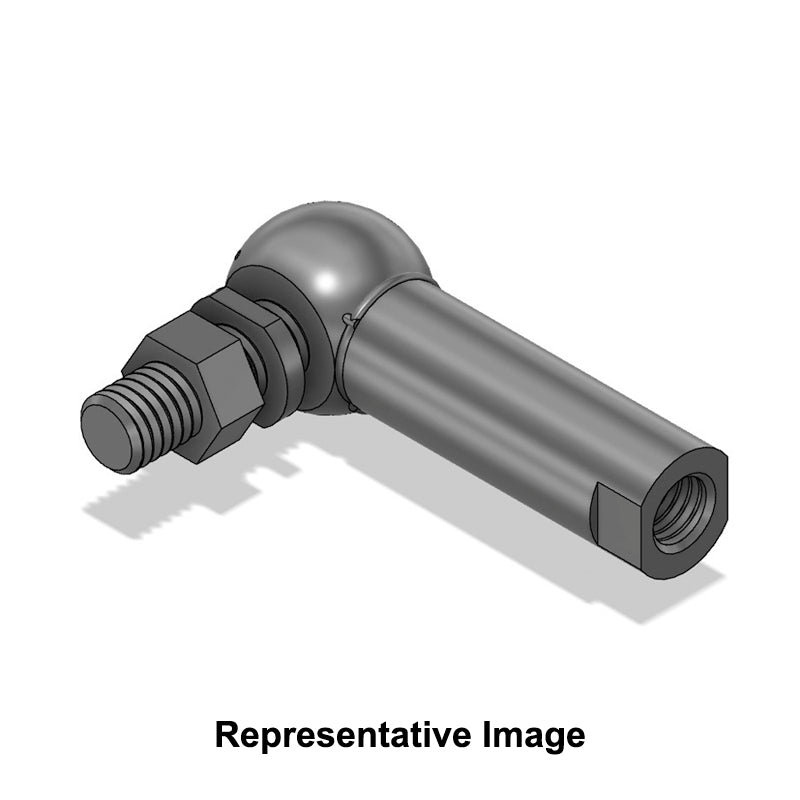

Chiavette CL10 Right Hand Steel Long Version Ball Joint 10mm Ball Diameter M6 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Chiavette Extra Long Steel Ball Joints: Ball joints are mechanical units for the connection of 2 parts which are perpendicular with respect to each other. They enable the transmission of alternating forces through angular and oscillating movements, at a moderate speed. These ball joints have been designed to be extra long which may be better suited to specific applications than the standard length ball joints. Crafted with precision engineering and high-quality materials, these ball joints offer superior performance and reliability. These ball joints do NOT feature external holes for a safety clip to be mounted and therefore these ball joints do NOT feature an integrated safety clip.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M6
- Thread Direction:
- Right Hand
- Outside Diameter:
- 10mm
- Style:
- Extra Long
- Type:
- Without Safety Clip
Technical

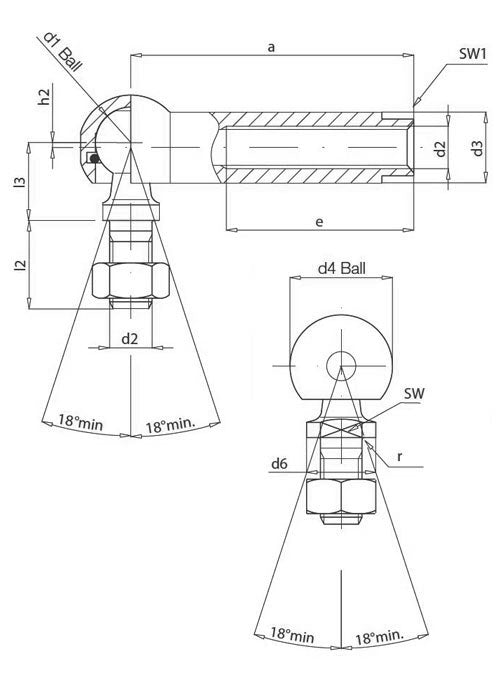

| --- | Dimensions |
|---|---|
| Thread Direction | Right Hand |
| d1 | 10mm |
| d2 | M6 |
| a | 40mm (+/-0.3) |
| d3 | 10mm (+/-0.5) |
| d4 | 14.8mm (+/-0.5) |
| d6 | 10mm |
| e | 26.5mm |
| h2 | 0.65mm (+/-0.5) |
| l2 | 12.5mm (+/-0.3) |
| l3 | 11mm (+/-0.3) |
| r | 0.3mm |
| sw | 8mm |
| sw1 | 8mm |
| Weight | 0.031 kg |
