SKU: CM-UCF204D1-NTN

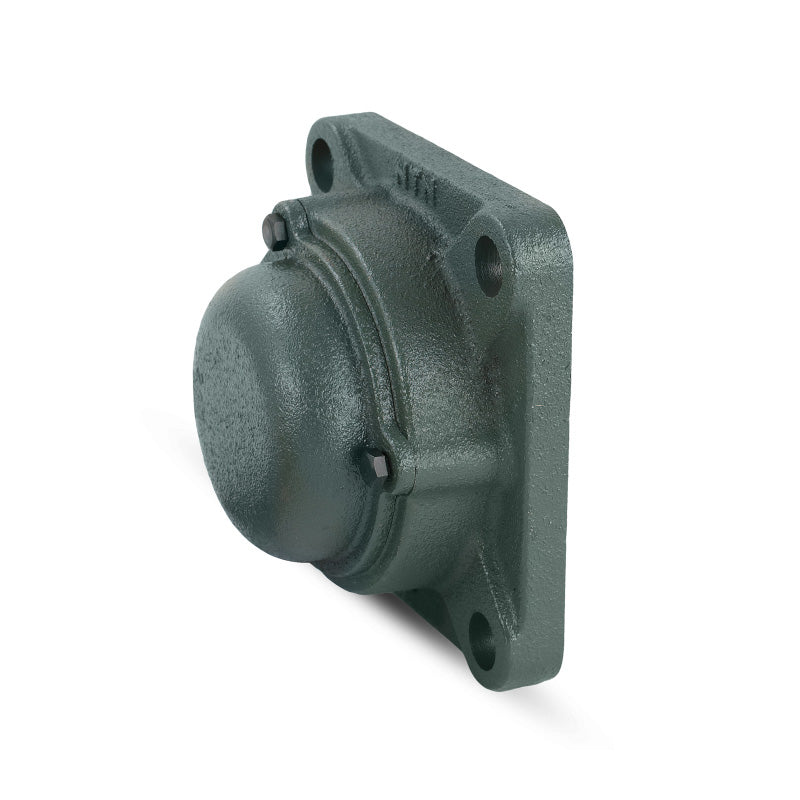

NTN CM-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€36,18
ex VAT
Regular price
Sale price
€36,18
ex VAT
In stock
Price Break
3+
€27,49
4+
€25,95
9+
€25,64
19+
€25,33
49+
€25,02
99+
€24,71
499+
€23,17
999+
€22,86
1999+
€22,55
2999+
€22,24
4999+
€21,62
Quantity
Couldn't load pickup availability
Description
Description
UCF200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| L | 86mm |
| J | 64mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 11mm |
| A | 25.5mm |
| N | 12mm |
| B | 31mm |
| S | 12.7mm |
| t<sub>2</sub> | 8mm |
| A<sub>5</sub> | 46mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 0.7 kg |
