SKU: CM-UCF206D1-NTN

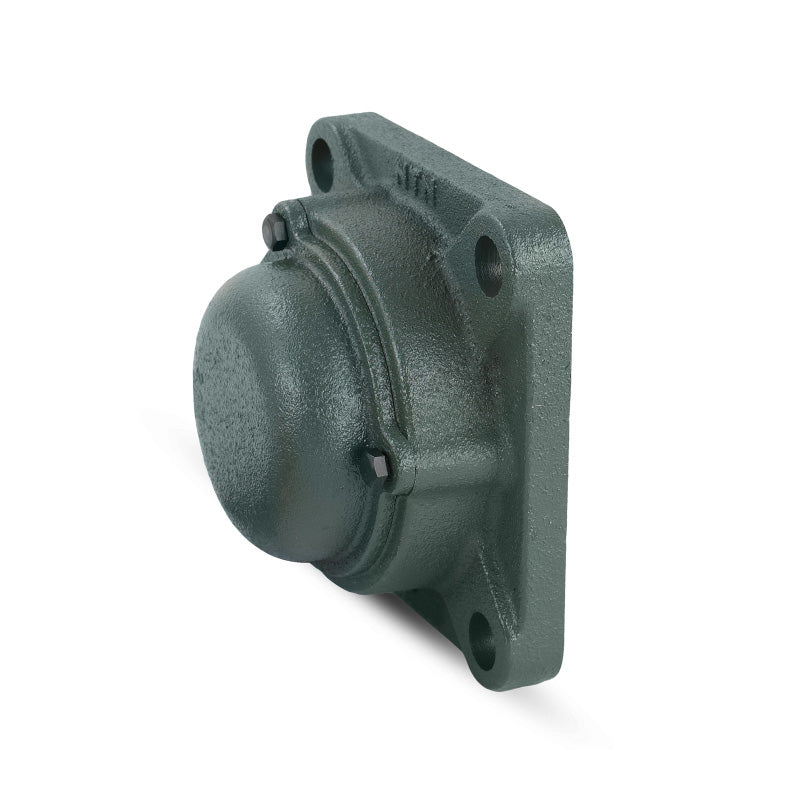

NTN CM-UCF206D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF206D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€44,19
ex VAT
Regular price
Sale price
€44,19
ex VAT
In stock
Price Break
3+
€33,58
4+
€31,69
9+
€31,32
19+
€30,94
49+
€30,56
99+
€30,18
499+
€28,30
999+
€27,92
1999+
€27,54
2999+
€27,17
4999+
€26,41
Quantity
Couldn't load pickup availability
Description
Description
UCF200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| L | 108mm |
| J | 83mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 13mm |
| A | 31mm |
| N | 12mm |
| B | 38.1mm |
| S | 15.9mm |
| t<sub>2</sub> | 11mm |
| A<sub>5</sub> | 56mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 1.3 kg |
