SKU: CM-UCF216D1-NTN

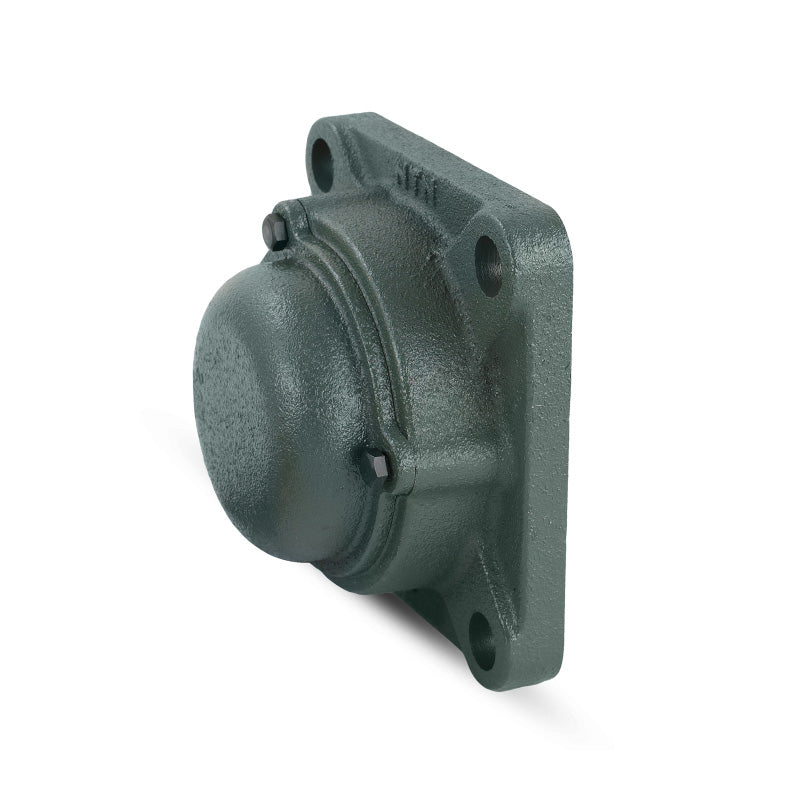

NTN CM-UCF216D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF216D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€215,43
ex VAT
Regular price
Sale price
€215,43
ex VAT
In stock
Price Break
3+
€163,72
4+
€154,52
9+
€152,68
19+
€150,84
49+
€149,00
99+
€147,16
499+
€137,96
999+
€136,12
1999+
€134,28
2999+
€132,44
4999+
€128,77
Quantity
Couldn't load pickup availability
Description
Description
UCF200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCF
- Bolt Hole Centres:
- 165mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| L | 208mm |
| J | 165mm |
| A<sub>2</sub> | 34mm |
| A<sub>1</sub> | 22mm |
| A | 58mm |
| N | 23mm |
| B | 82.6mm |
| S | 33.3mm |
| t<sub>2</sub> | 16mm |
| A<sub>5</sub> | 106mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 9.2 kg |
