SKU: CM-UCFC202-009D1-NTN

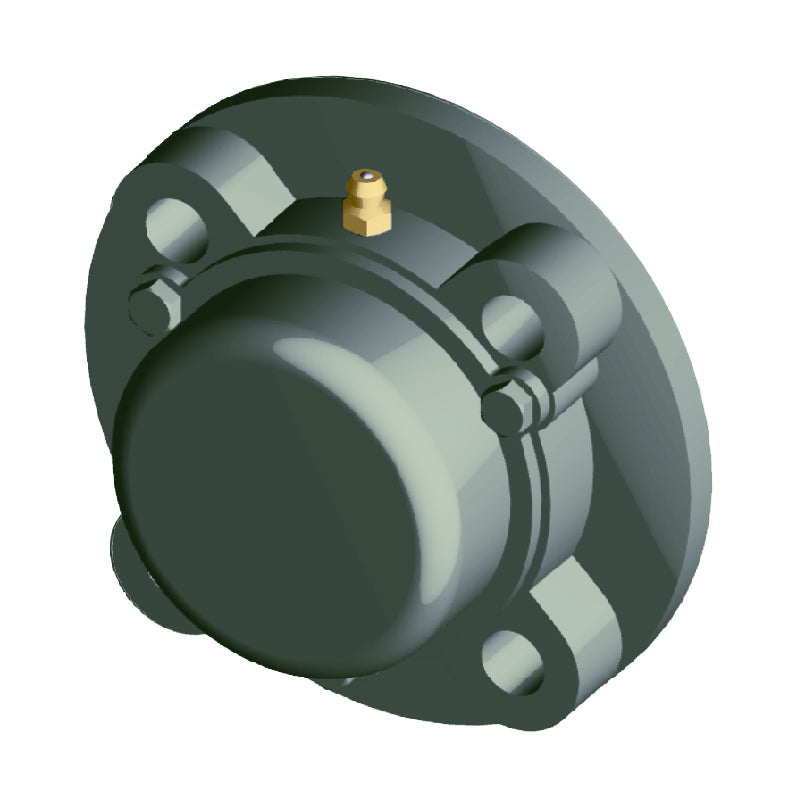

NTN CM-UCFC202-009D1 Imperial Four Bolt Cast Iron Round Flanged Housing with 9/16 inch Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFC202-009D1 Imperial Four Bolt Cast Iron Round Flanged Housing with 9/16 inch Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 2-11/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 9/16 inch |
| L | 3-15/16 inch |
| J | 3-5/64 inch |
| (J<sub>1</sub>) | 2-11/64 inch |
| A<sub>2</sub> | 25/64 inch |
| N | 15/32 inch |
| A<sub>3</sub> | 13/64 inch |
| A<sub>1C</sub> | 13/16 inch |
| A | 1 inch |
| H<sub>3</sub> | 2.4409 inch |
| B | 1.2205 inch |
| S | 0.5 inch |
| t<sub>2</sub> | 5/16 inch |
| A<sub>5</sub> | 1-13/16 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 2 lbs |
