SKU: CM-UCP211D1-NTN

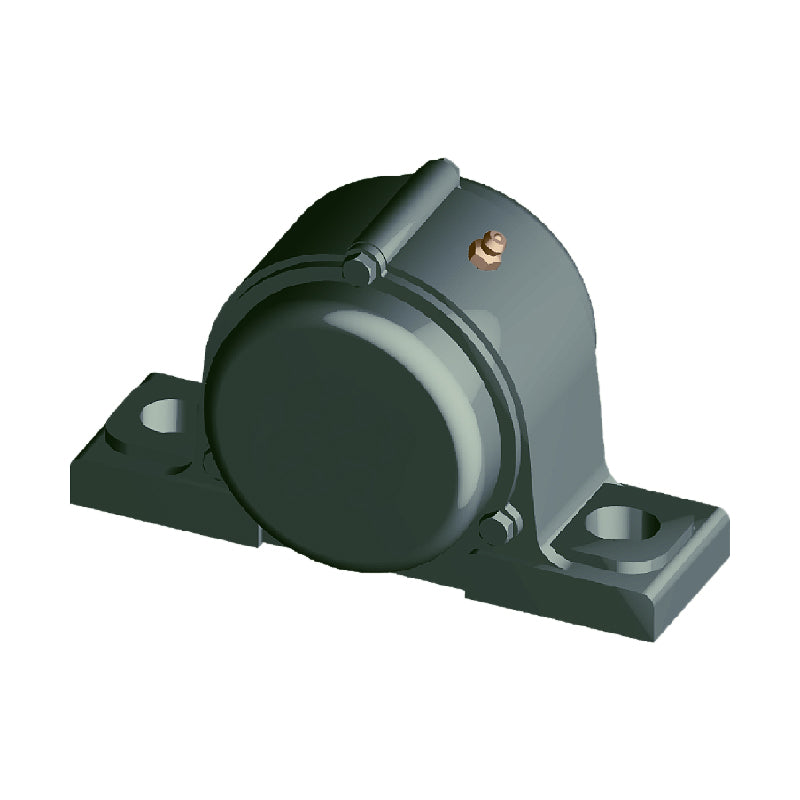

NTN CM-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€94,11
ex VAT
Regular price
Sale price
€94,11
ex VAT
In stock
Price Break
3+
€71,52
4+
€67,50
9+
€66,70
19+
€65,90
49+
€65,09
99+
€64,29
499+
€60,27
999+
€59,47
1999+
€58,66
2999+
€57,86
4999+
€56,25
Quantity
Couldn't load pickup availability
Description
Description
UCP200_DESC
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCP
- Bolt Hole Centres:
- 171mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| H | 63.5mm |
| L | 219mm |
| J | 171mm |
| A | 60mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 23mm |
| H<sub>2</sub> | 126mm |
| L<sub>1</sub> | 65mm |
| B | 55.6mm |
| S | 22.2mm |
| t<sub>2</sub> | 11mm |
| H<sub>3</sub> | 130mm |
| A<sub>5</sub> | 100mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 4.4 kg |
