SKU: CNB-88-B-IKO

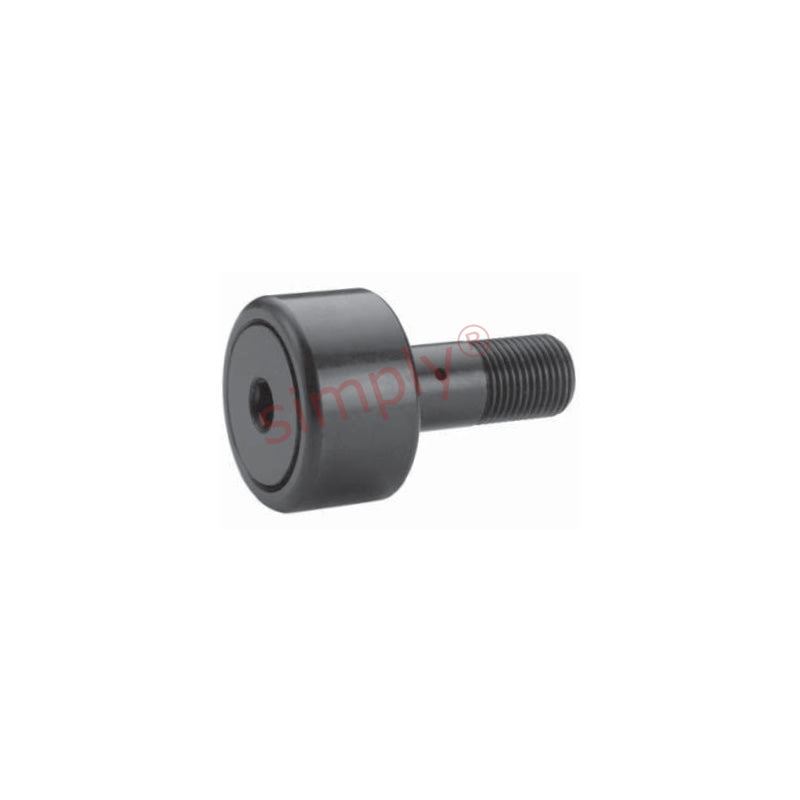

IKO CNB88B Hex Head Cylindrical Cam Follower 2-3/4 inch Outside Diameter Allow 7-10 Days
IKO CNB88B Hex Head Cylindrical Cam Follower 2-3/4 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
- Pitch:
- UNF 1-14
Technical
Technical
| A | 2.75 inch |
|---|---|
| B | 1.5 inch |
| C | 1 inch |
| D | 2.25 inch |
| E | 1.125 inch |
| Thread class 2A F | 1-14 UNS |
| G | 9/16 inch |
| H | 1/8 inch |
| J | 3/16 inch |
| Min boss diameter | 1-5/16 inch |
| Recommended bore | 1 inch |
| Recommended torque | 2250 lbf-in |
| Max static capacity | 16450 lbs |
| Basic dynamic rating | 11720 lbs |
