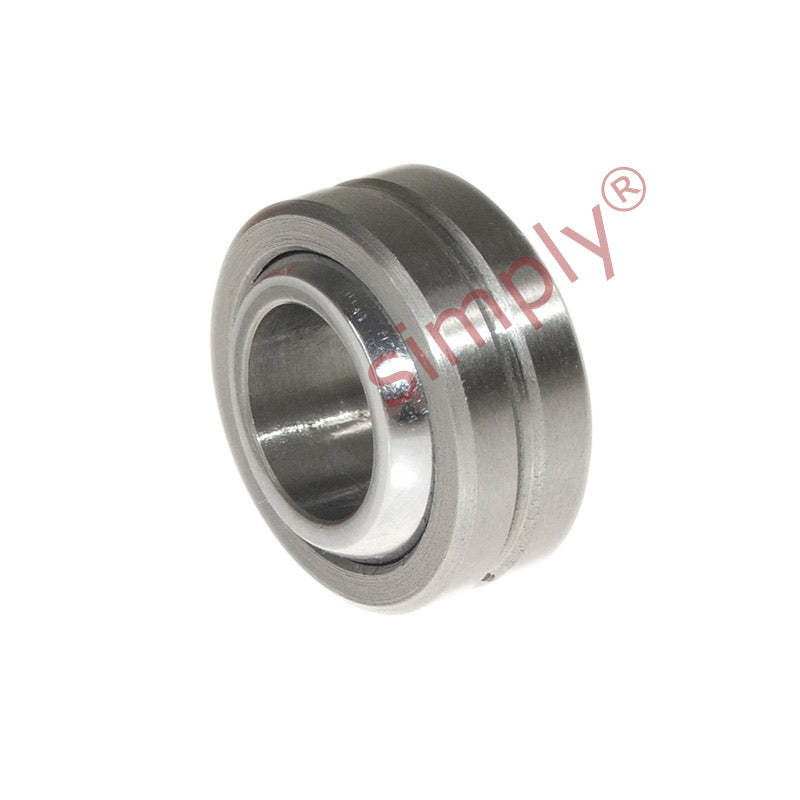

COM14T Branded PTFE Lined Imperial Spherical Plain Bearing 7/8 inch Bore

Name: COM14T Branded PTFE Lined Imperial Spherical Plain Bearing 7/8 inch Bore
Brand: Major Brand
SKU: COM14T-MB
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 22.23mm = 0.875 (7/8) inch
Outside Diameter:: 39.69mm = 1.563 (1-9/16) inch
Width:: 17.86mm = 0.703 (45/64) inch

Technical

b	7/8 inch
w	7/8 inch
h	45/64 inch
D	1-9/16 inch
O	0.98 inch
Static load	186639 N
