SKU: CP-INT-BJ-J21

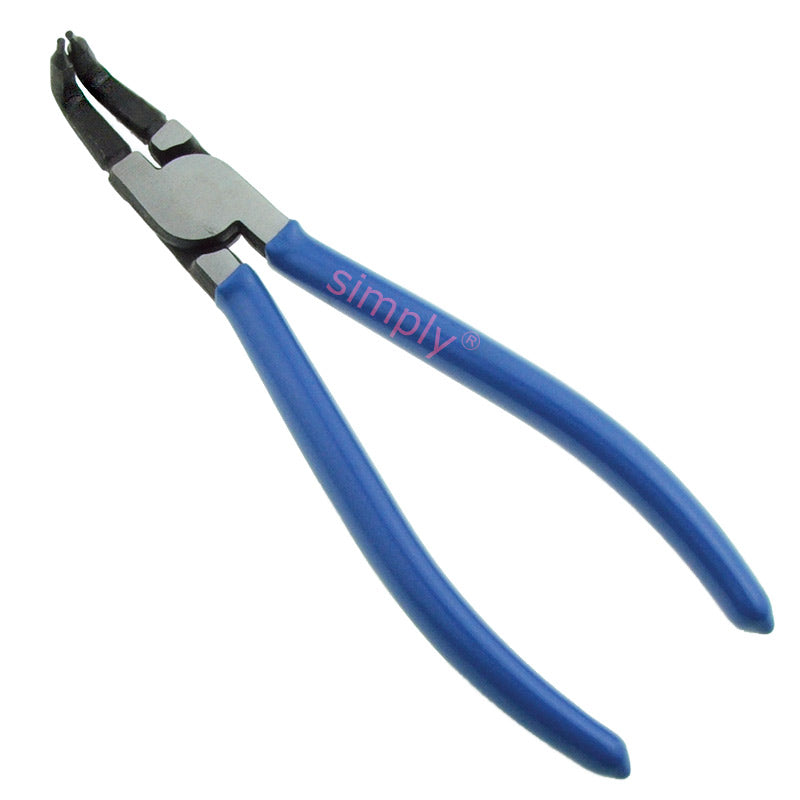

Professional Internal Bent Jaw Circlip Pliers for 19-60mm Circlips
- Regular price
- €21.45 ex VAT
- Sale price
- €21,45
- Regular price
-
Quantity Price Breaks
Professional Internal Bent Jaw Circlip Pliers for 19-60mm Circlips
- Regular price
- €21.45 ex VAT
- Sale price
- €21,45
- Regular price
-
Description
|
Internal Circlip Pliers: Designed to permit easy assembly and disassembly of machinery and equipment that utilize circlips. Internal pliers with straight jaws are designed for applications where easy straight on access is available to the circlip, the bent jaw versions introduce flexibility into the access of these circlips, e.g. the clip could be part way down a hole - straight pliers would permit easy access however in instances where a shaft comes out of the hole the handles of straight pliers may foul on the shaft so in this instance bent pliers should be considered. Benefits: Safe removal and assembly of circlips. |
Technical
| Tip diameter A | = | 1.74mm |
| Tip length B | = | 22.13mm |
| Tip height C | = | 11.24mm |
| Tip to pivot D | = | 37.37 |
| Handle length E | = | 116.68mm |
| Handle to pivot F | = | 132.46mm |
| Overall length G | = | 170.25mm |
| Max tip opening H | = | 44.08mm |
| Max handle opening J | = | 190.25mm |
| Min Handle opening K | = | 45.18mm |
