SKU: CSA.209-28

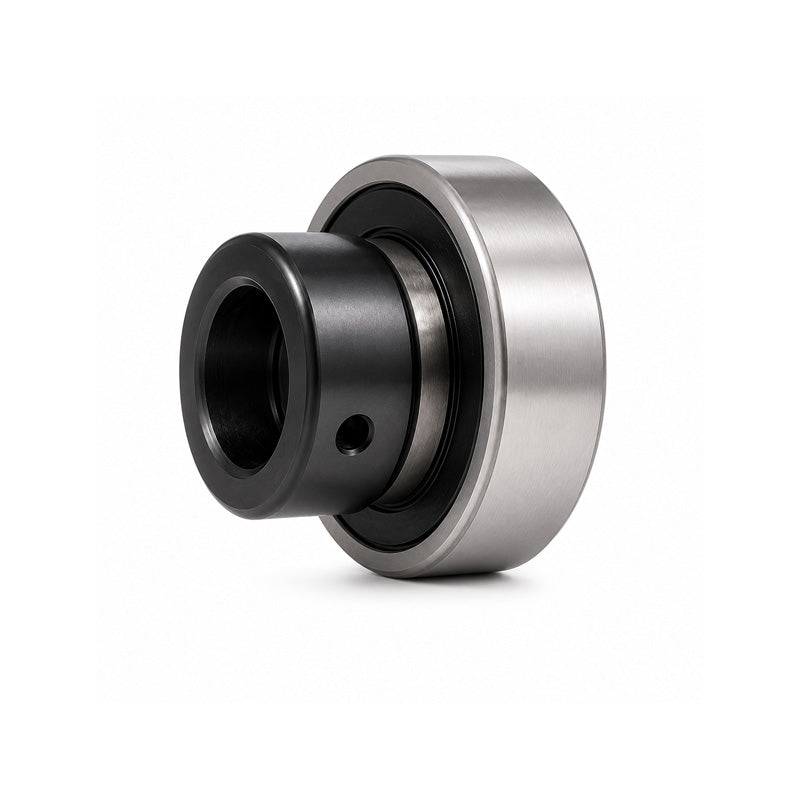

CSA209-28 Imperial Bearing Insert with Locking Collar 1-3/4 inch Bore 85mm Outside Dia
CSA209-28 Imperial Bearing Insert with Locking Collar 1-3/4 inch Bore 85mm Outside Dia
Out of stock
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
- Style:
- CSA
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| Be | 19mm |
| D | 85mm |
| z | 30.2mm |
| n | 9.5mm |
| m | 20.7mm |
| Bi | 43.7mm |
| k | 63.5mm |
| H | 18.3mm |
| G | 6.5mm |
| h | 6.3mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.73 kg |
| Dynamic load | 3300 kgf |
| Static load | 2100 kgf |
