SKU: CSCE-60-SB-IKO

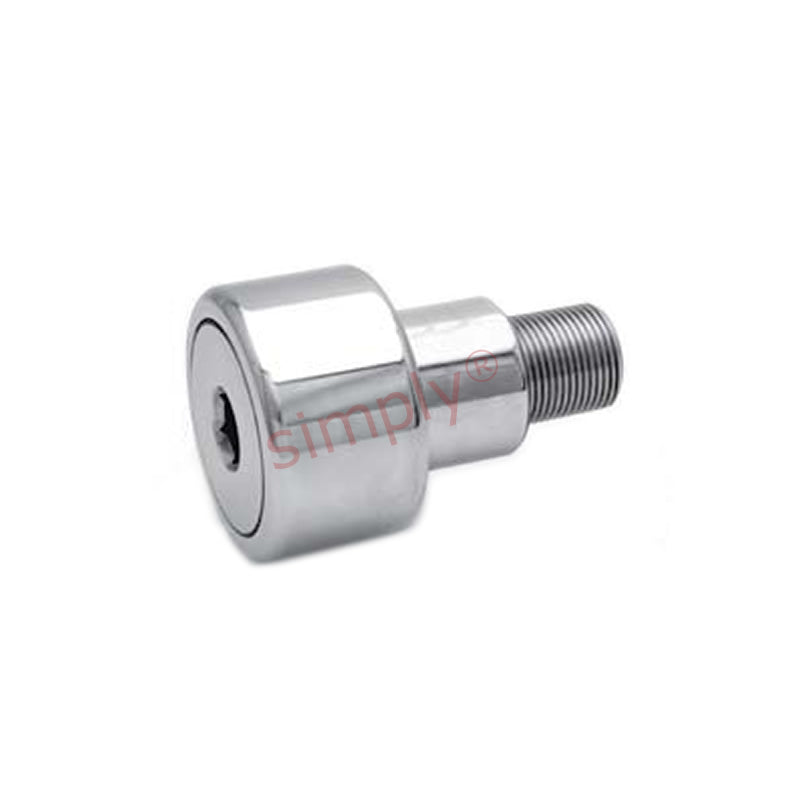

IKO CSCE60SB Hex Head Stainless Steel Crowned Cam Follower with Eccentric Stud 1-7/8 inch Outside Diameter Allow 7-10 Days
IKO CSCE60SB Hex Head Stainless Steel Crowned Cam Follower with Eccentric Stud 1-7/8 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Stainless Steel Crowned Eccentric Cam Follower with Hex Head: These bearings are dimensionally interchangeable with standard cam followers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Width:
- 25.4mm = 1 inch
- Pitch:
- UNF 3/4-16
Technical
Technical
| A | 1.875 inch |
|---|---|
| B | 1 inch |
| K | 0.875 inch |
| L | 1 inch |
| D | 1.75 inch |
| E | 0.875 inch |
| Thread class 2A F | 3/4-16 UNF |
| Min boss diameter | 1-3/64 inch |
| Recommended torque | 1250 lbf-in |
| Basic dynamic rating | 6385 lbs |
