SKU: CSL16M10x45LH-CHI

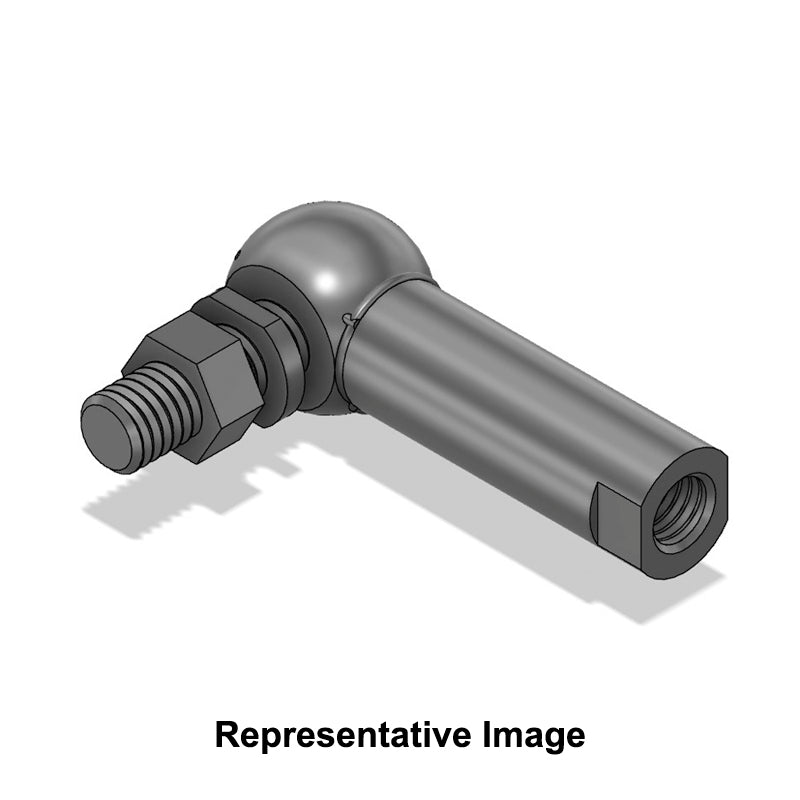

Chiavette CSL16 Left Hand Steel Long Ball Joint with Safety Clip 16mm Ball Diameter M10 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Chiavette Extra Long Steel Ball Joints with Safety Clip: Ball joints are mechanical units for the connection of 2 parts which are perpendicular with respect to each other. They enable the transmission of alternating forces through angular and oscillating movements, at a moderate speed. These ball joints have been designed to be extra long which may be better suited to specific applications than the standard length ball joints. Crafted with precision engineering and high-quality materials, these ball joints offer superior performance and reliability. These types of ball joints feature external slots for the integrated safety clip that ensures secure attachment, preventing accidental disengagement or detachment of the ball stud during operation.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M10
- Thread Direction:
- Left Hand
- Outside Diameter:
- 16mm
- Style:
- Extra Long
- Type:
- With Safety Clip
Technical
| --- | Dimensions |
|---|---|
| Thread Direction | Left Hand |
| d1 | 16mm |
| d2 | M10 |
| a | 45mm (+/-0.3) |
| d3 | 16mm (+/-0.5) |
| d4 | 24mm (+/-0.5) |
| d6 | 16mm |
| e | 30.5mm |
| h2 | 1.15mm (+/-0.5) |
| l2 | 20mm (+/-0.3) |
| l3 | 16mm (+/-0.3) |
| r | 0.5mm |
| sw | 13mm |
| sw1 | 13mm |
| Angle | 15 deg |
| Weight | 0.113 kg |
