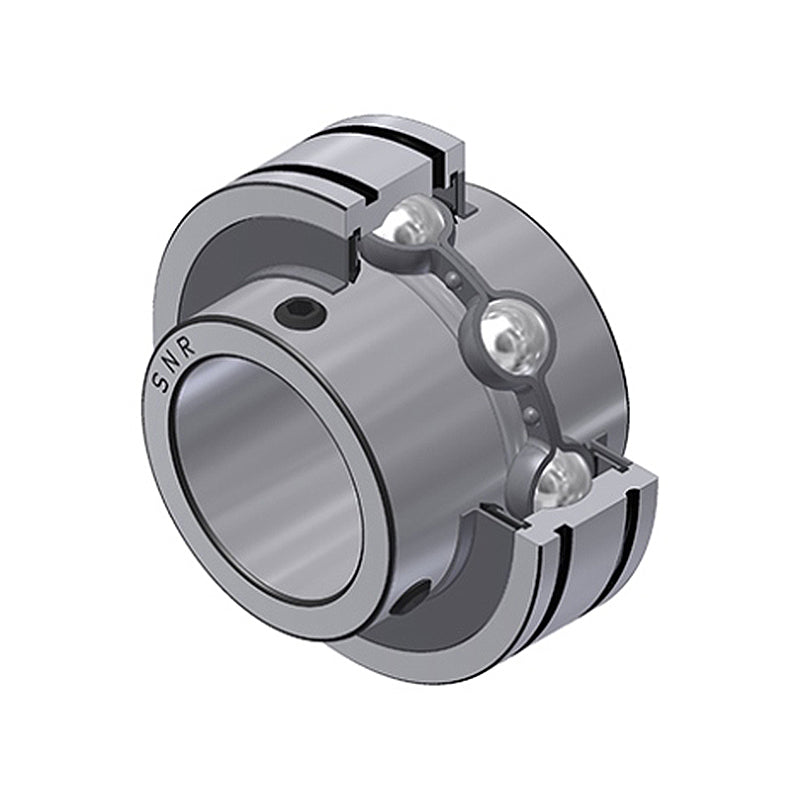

• SNR CUC205-15 Imperial Full Width Grooved Parallel Outer Bearing Insert 15/16 inch Bore 52mm Outside Diameter with Grub Screws
1 1

SKU: CUC205-15-SNR

SNR CUC205-15 Imperial Full Width Grooved Parallel Outer Bearing Insert 15/16 inch Bore 52mm Outside Diameter with Grub Screws

SNR CUC205-15 Imperial Full Width Grooved Parallel Outer Bearing Insert 15/16 inch Bore 52mm Outside Diameter with Grub Screws
€17,74 ex VAT
€17,74 ex VAT
Sale Sold out

In stock

Price Break
3+ €13,48
5+ €12,73
9+ €12,57
19+ €12,42
49+ €12,27
74+ €12,12
99+ €11,36
199+ €11,21
249+ €11,06
499+ €10,91
999+ €10,60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
X62A3KZBXW
Brand / Quality:
SNR - High Quality
Thread Size:
1/4-28UNF
Inside Diameter:
23.813mm = 0.937 (15/16) inch
Outside Diameter:
52mm
Width:
34mm
Style:
CUC
Technical
d 15/16 inch
d 23.813mm
D 52mm
C 17mm
B 34mm
S 14.3mm
a 3.2mm
b 1.35mm
N1 49.73mm
m 5mm
C1 4mm
r min 0.6mm
G 1/4-28UNF
Wrench Size 1/8 inch
Set screw torque 3.7 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 14kN
Static load rating C0 7.9kN
Weight 0.2kg
