SKU: CUC206-19

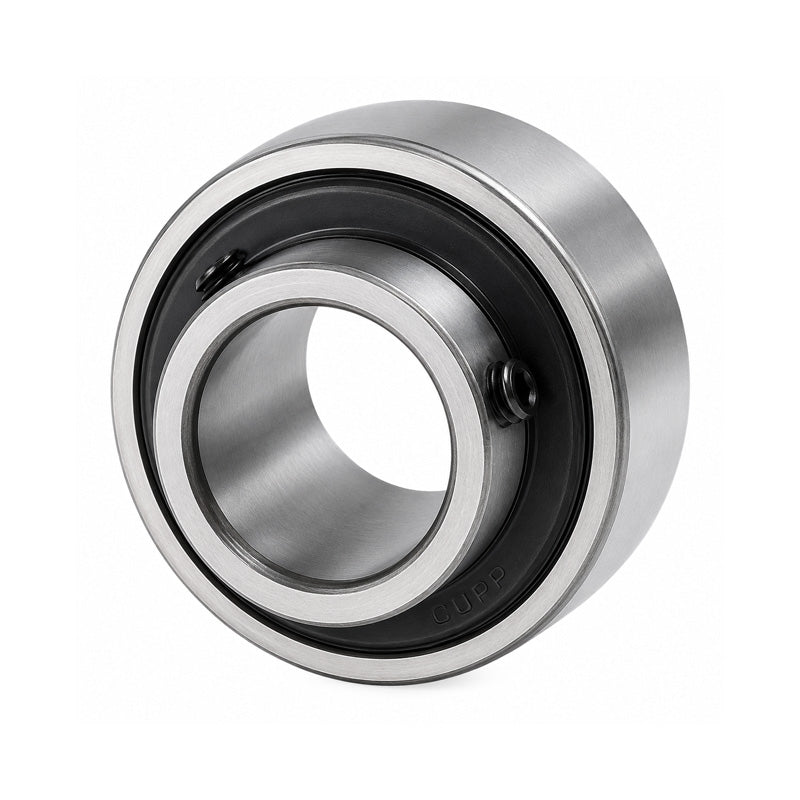

CUC206-19 Imperial Cylindrical Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
CUC206-19 Imperial Cylindrical Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
Equivalent to: UR206-19 RB206-19
Out of stock
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| N | 15.9mm |
| M | 22.2mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 19500 N |
| Static Load | 11300 N |
| Weight | 0.32 kg |
