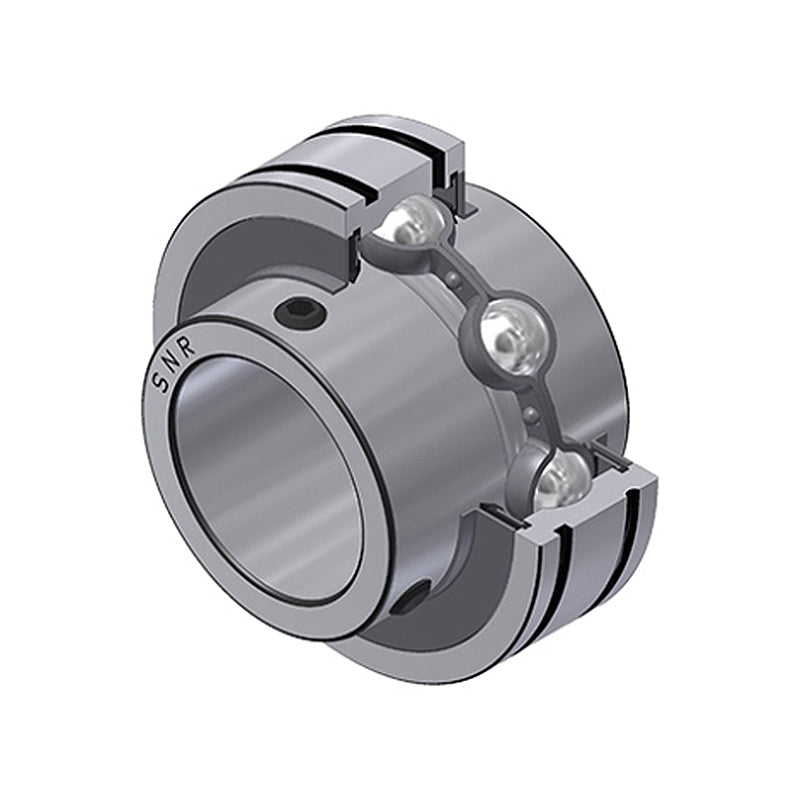

• SNR CUC207-23 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter with Grub Screws
1 1

SKU: CUC207-23-SNR

SNR CUC207-23 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter with Grub Screws

SNR CUC207-23 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter with Grub Screws
€26,61 ex VAT
€26,61 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,22
5+ €19,09
9+ €18,86
19+ €18,63
49+ €18,41
74+ €18,18
99+ €17,04
199+ €16,82
249+ €16,59
499+ €16,36
999+ €15,91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
X62A3KZBXW
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
36.513mm = 1.437 (1-7/16) inch
Outside Diameter:
72mm
Width:
42.9mm
Style:
CUC
Technical
d 1-7/16 inch
d 36.513mm
D 72mm
C 20mm
B 42.9mm
S 17.5mm
a 3.3mm
b 1.9mm
N1 68.81mm
m 6.5mm
C1 5mm
r min 1.1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 25.7kN
Static load rating C0 15.2kN
Weight 0.5kg
