SKU: CUC209-28

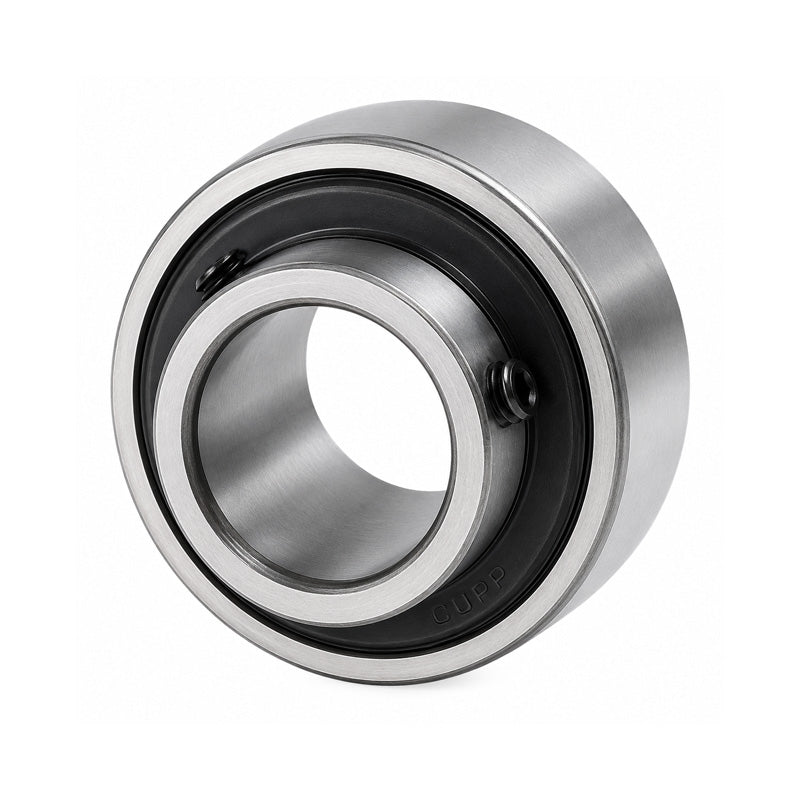

CUC209-28 Imperial Cylindrical Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
CUC209-28 Imperial Cylindrical Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
Equivalent to: UR209-28 RB209-28
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| N | 19mm |
| M | 30.2mm |
| G | 8mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 31600 N |
| Static Load | 20600 N |
| Weight | 0.7 kg |
