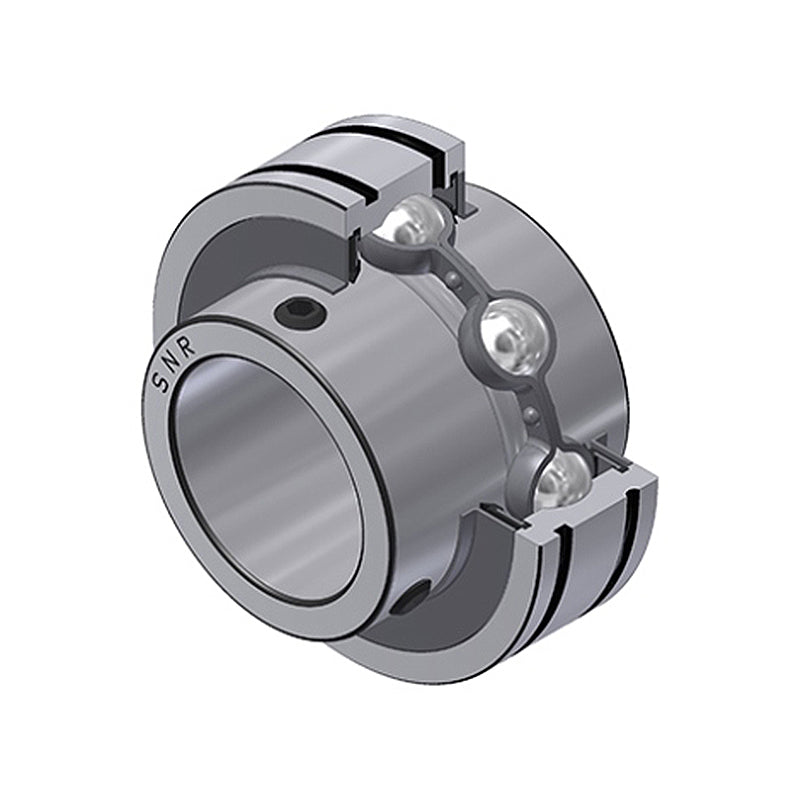

• SNR CUC209-28 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Grub Screws
1 1

SKU: CUC209-28-SNR

SNR CUC209-28 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Grub Screws

SNR CUC209-28 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter with Grub Screws
€30,86 ex VAT
€30,86 ex VAT
Sale Sold out

In stock

Price Break
3+ €23,45
5+ €22,13
9+ €21,87
19+ €21,60
49+ €21,34
74+ €21,08
99+ €19,76
199+ €19,50
249+ €19,23
499+ €18,97
999+ €18,44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
X62A3KZBXW
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Outside Diameter:
85mm
Width:
49.2mm
Style:
CUC
Technical
d 1-3/4 inch
d 44.45mm
D 85mm
C 22mm
B 49.2mm
S 19mm
a 3.5mm
b 1.9mm
N1 81.81mm
m 8mm
C1 5.1mm
r min 1.1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 31.9kN
Static load rating C0 20.8kN
Weight 0.7kg
