SKU: DG10PB-DURB

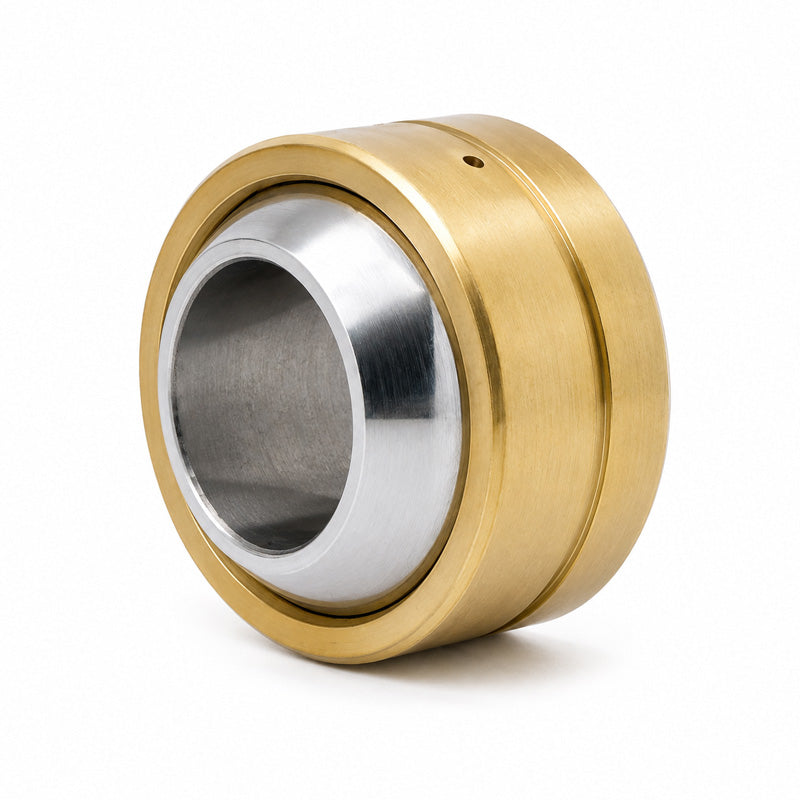

Durbal DG10PB Maintenance Required Steel / Bronze Spherical Plain Bearing 10x22x14mm
- Regular price
- €11.00 ex VAT
- Sale price
- €11,00
- Regular price
-
In stock
Quantity Price Breaks
10
€9.79
19
€9.24
29
€9.13
39
€9.02
49
€8.91
74
€8.80
99
€8.25
199
€8.14
249
€8.03
499
€7.92
999
€7.70
SKU:
DG10PB-DURB
Durbal DG10PB Maintenance Required Steel / Bronze Spherical Plain Bearing 10x22x14mm
- Regular price
- €11.00 ex VAT
- Sale price
- €11,00
- Regular price
-
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Bearing Brass: These spherical bearings consist of a hardened, polished, hard chromium-plated steel joint ball and a bearing brass outer ring with oil groove and drill holes. For use with high impact loads and alternating stresses in radial and axial directions. Preferred in situations with large swivelling movements. Temperature range: -40 deg C to +110 deg C.

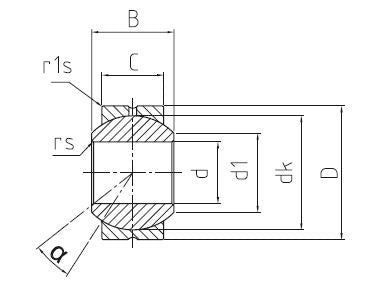

Technical
| d | = | 10mm |
| d1 | = | 12.9mm |
| D | = | 22mm |
| dk | = | 19mm |
| B | = | 14mm |
| C | = | 10.5mm |
| rs | = | 0.3mm |
| r1s | = | 1.2mm |
| Tilt angle & | = | alpha |
| = | 13 Deg | |
| Weight | = | 0.031 kg |
| Basic load rating dyn C | = | 19 kN |
| Basic load rating stat Co | = | 43 kN |
| CN | = | 40-90 & |
| micro | = | m |
