SKU: DG20PB-DURB

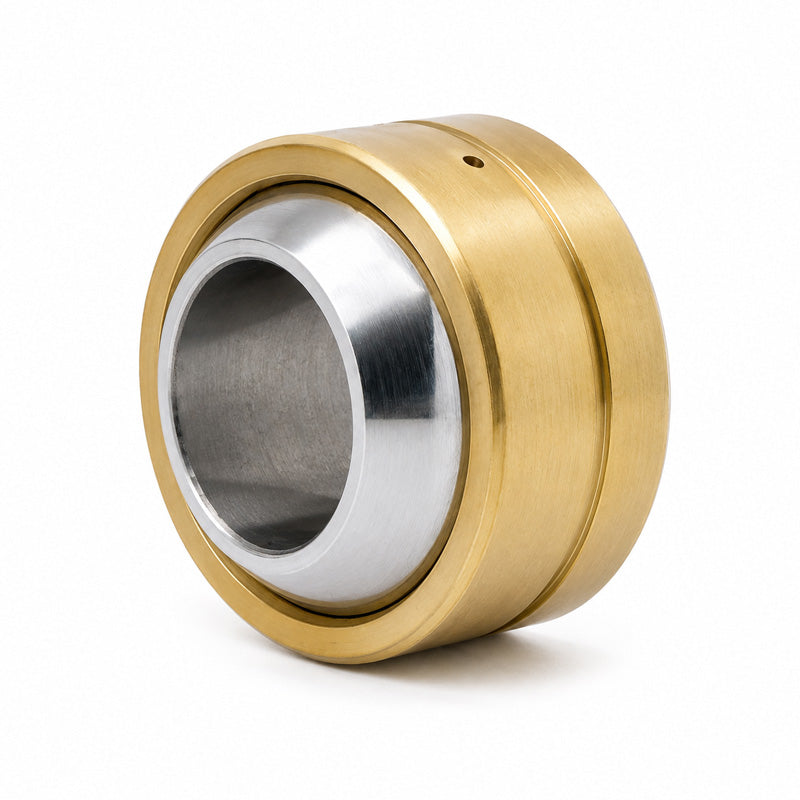

Durbal DG20PB Maintenance Required Steel / Bronze Spherical Plain Bearing 20x40x25mm
Durbal DG20PB Maintenance Required Steel / Bronze Spherical Plain Bearing 20x40x25mm
Regular price
€55,82
ex VAT
Regular price
Sale price
€55,82
ex VAT
Equivalent to: GE20PB
In stock
Price Break
10+
€42,42
19+
€40,03
29+
€39,56
39+
€39,08
49+
€38,60
74+
€38,13
99+
€35,75
199+
€35,27
249+
€34,79
499+
€34,32
999+
€33,36
Quantity
Couldn't load pickup availability
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Bearing Brass: These spherical bearings consist of a hardened, polished, hard chromium-plated steel joint ball and a bearing brass outer ring with oil groove and drill holes. For use with high impact loads and alternating stresses in radial and axial directions. Preferred in situations with large swivelling movements. Temperature range: -40 deg C to +110 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 20mm
- Material:
- Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| d1 | 24.3mm |
| D | 40mm |
| dk | 34.9mm |
| B | 25mm |
| C | 18mm |
| rs | 0.4mm |
| r1s | 1.5mm |
| Tilt angle α | 15 Deg |
| Weight | 0.18 kg |
| Basic load rating dyn C | 57 kN |
| Basic load rating stat Co | 135 kN |
| CN | 50-110 µm |
