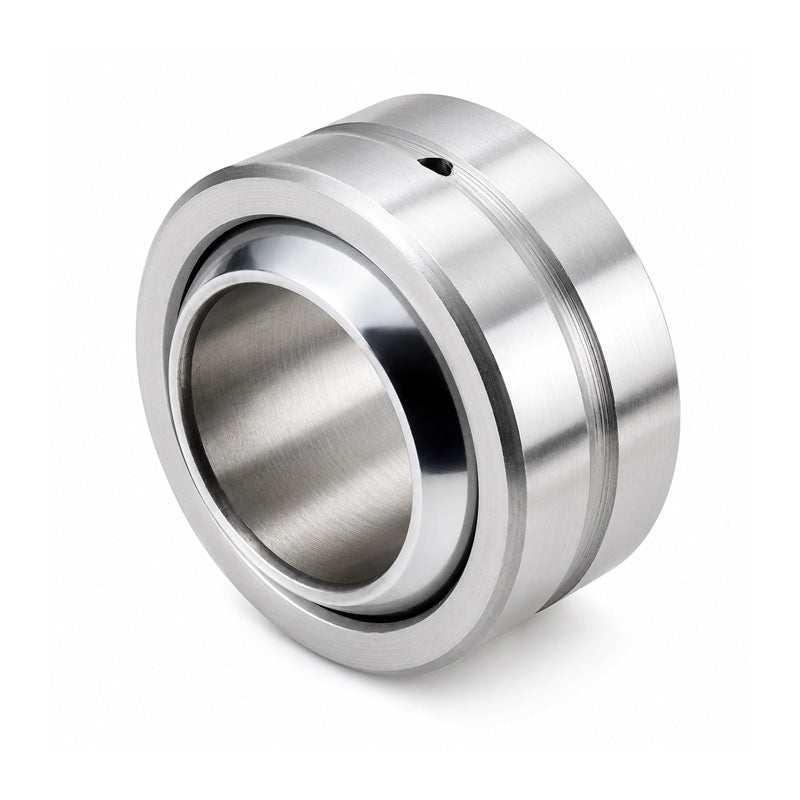

Durbal DGE12FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 12x26x15mm
- Regular price
- €11.73 ex VAT
- Sale price
- €11,73
- Regular price
-
Quantity Price Breaks
Durbal DGE12FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 12x26x15mm
- Regular price
- €11.73 ex VAT
- Sale price
- €11,73
- Regular price
-
Description
DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated steel outer ring lined with bronze - PTFE-composite. Suitable for use with high unidirectional loads. Sliding combination: Steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Wider joint ball and larger outside diameter compared to DGE_UK series, to enable higher load ratings and larger tilt angle
Up to size 12 joint ball is hard chromium plated
Technical
| d | = | 12mm |
| d1 | = | 16mm |
| D | = | 26mm |
| dk | = | 22mm |
| B | = | 15mm |
| C | = | 9mm |
| rs | = | 0.3mm |
| r1s | = | 0.3mm |
| tilt angle & | = | alpha |
| = | 18 deg | |
| weight | = | 0.033kg |
| basic load rating dyn C | = | 18 kN |
| basic load rating stat Co | = | 45 kN |
| radial clearance CN | = | 4-28 & |
| micro | = | m |
