SKU: DGE16ES-DURB

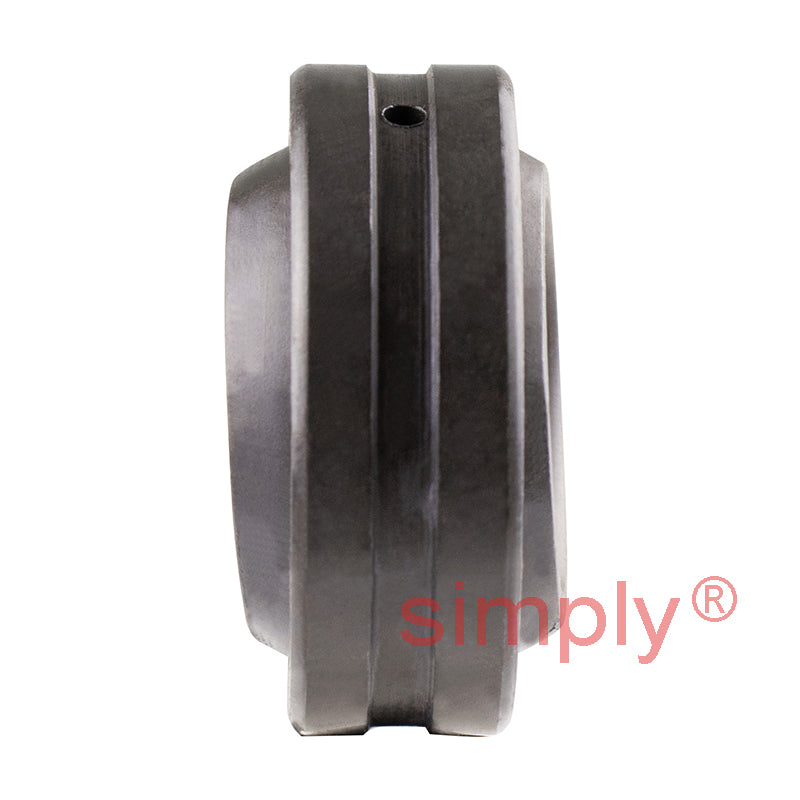

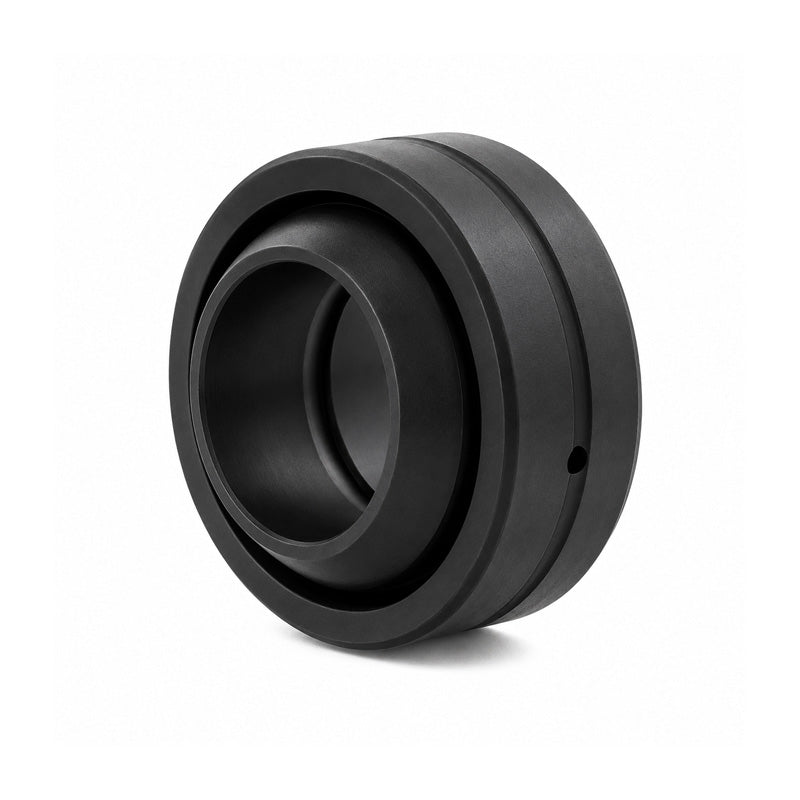

Durbal DGE16ES Maintenance Required Steel / Steel Spherical Plain Bearing 16x30x14mm
- Regular price
- €7.45 ex VAT
- Sale price
- €7,45
- Regular price
-
In stock
Quantity Price Breaks
10
€6.63
19
€6.26
29
€6.18
39
€6.11
49
€6.03
74
€5.96
99
€5.59
199
€5.51
249
€5.44
499
€5.36
999
€5.22
SKU:
DGE16ES-DURB
Durbal DGE16ES Maintenance Required Steel / Steel Spherical Plain Bearing 16x30x14mm
- Regular price
- €7.45 ex VAT
- Sale price
- €7,45
- Regular price
-
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15

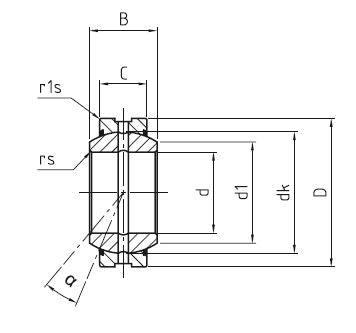

Technical
| d | = | 16mm |
| d1 | = | 19mm |
| D | = | 30mm |
| dk | = | 25mm |
| B | = | 14mm |
| C | = | 10mm |
| rs | = | 0.3mm |
| r1s | = | 0.3mm |
| tilt angle & | = | alpha |
| = | 10 deg | |
| weight | = | 0.041kg |
| basic load rating dyn C | = | 21.2 kN |
| basic load rating stat Co | = | 106 kN |
| CN | = | 40-82 & |
| micro | = | m |
