SKU: DGE20-UK-DURB

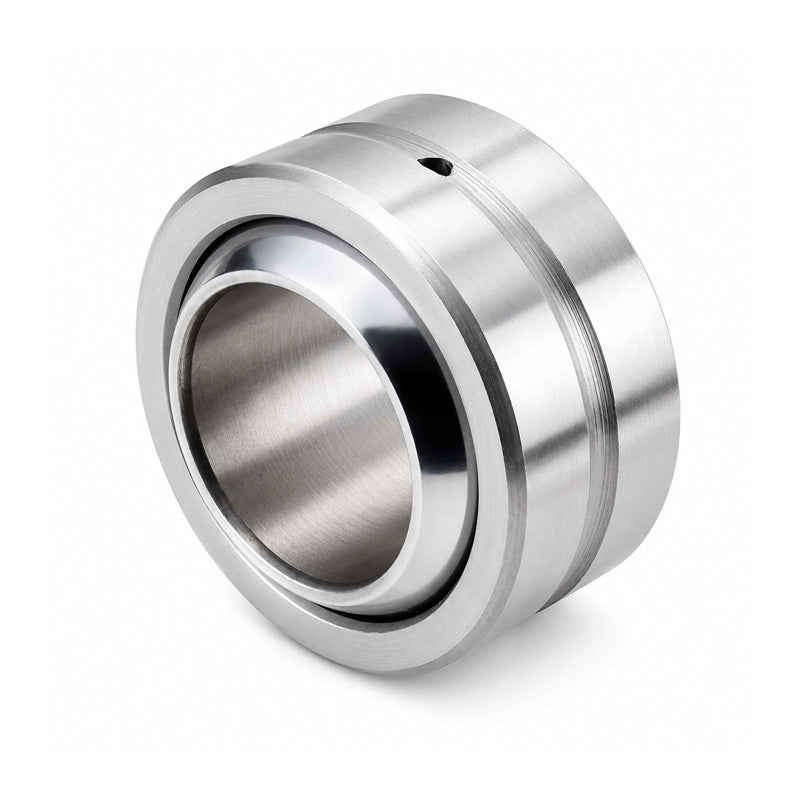

Durbal DGE20-UK Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 20x35x16mm
Durbal DGE20-UK Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 20x35x16mm
Regular price
€15,26
ex VAT
Regular price
Sale price
€15,26
ex VAT
Equivalent to: GE20UK GE20C
Low stock
Price Break
10+
€11,60
19+
€10,95
29+
€10,81
39+
€10,68
49+
€10,55
74+
€10,42
99+
€9,77
199+
€9,64
249+
€9,51
499+
€9,38
999+
€9,12
Quantity
Couldn't load pickup availability
Description
Description
DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated outer ring lined with bronze - PTFE-composite. Suitable for use with high unilaterally acting loads. Sliding combination - steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Up to size 12 joint ball is hard chromium plated.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 20mm
- Material:
- PTFE Lined
Technical
Technical
| d | 20mm |
|---|---|
| d1 | 24mm |
| D | 35mm |
| dk | 29mm |
| B | 16mm |
| C | 12mm |
| rs | 0.3mm |
| r1s | 0.3mm |
| tilt angle α | 9 deg |
| weight | 0.066kg |
| basic load rating dyn C | 31 kN |
| basic load rating stat Co | 78 kN |
| radial clearance CN | 5-35 µm |
