SKU: DGE360ES-DURB

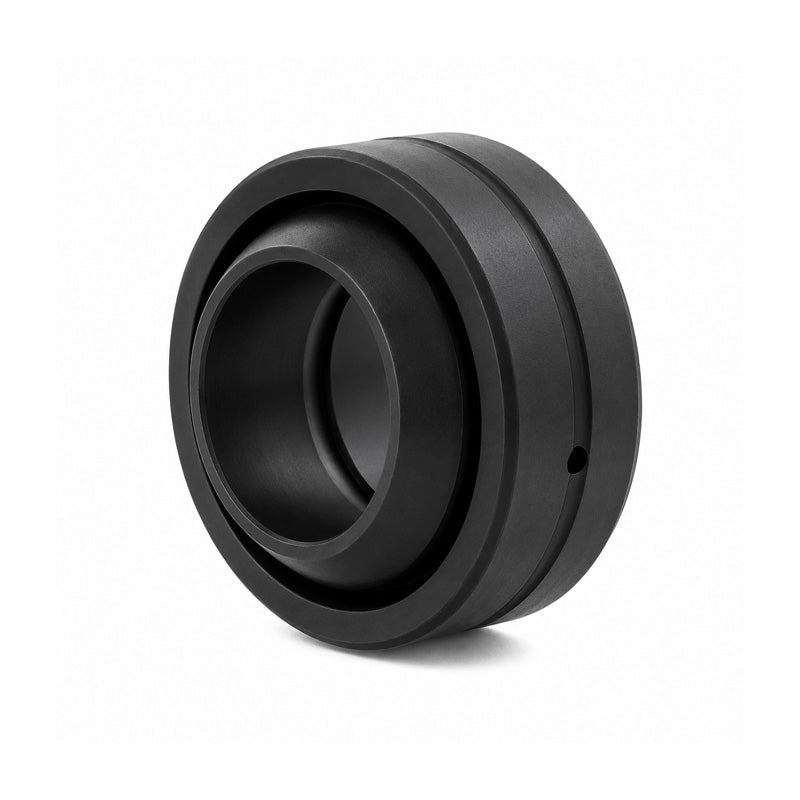

Durbal DGE360ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 360x480x160mm
Durbal DGE360ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 360x480x160mm
Equivalent to: GE360DO GE360ES
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 360mm
Technical
Technical
| d | 360mm |
|---|---|
| d1 | 388.3mm |
| D | 480mm |
| dk | 420mm |
| B | 160mm |
| C | 135mm |
| rs | 1.1mm |
| r1s | 3mm |
| tilt angle α | 3.6 deg |
| weight | 84.2kg |
| basic load rating dyn C | 4820 kN |
| basic load rating stat Co | 24098 kN |
| CN | 135-261 µm |
