SKU: DGE50ES-DURB

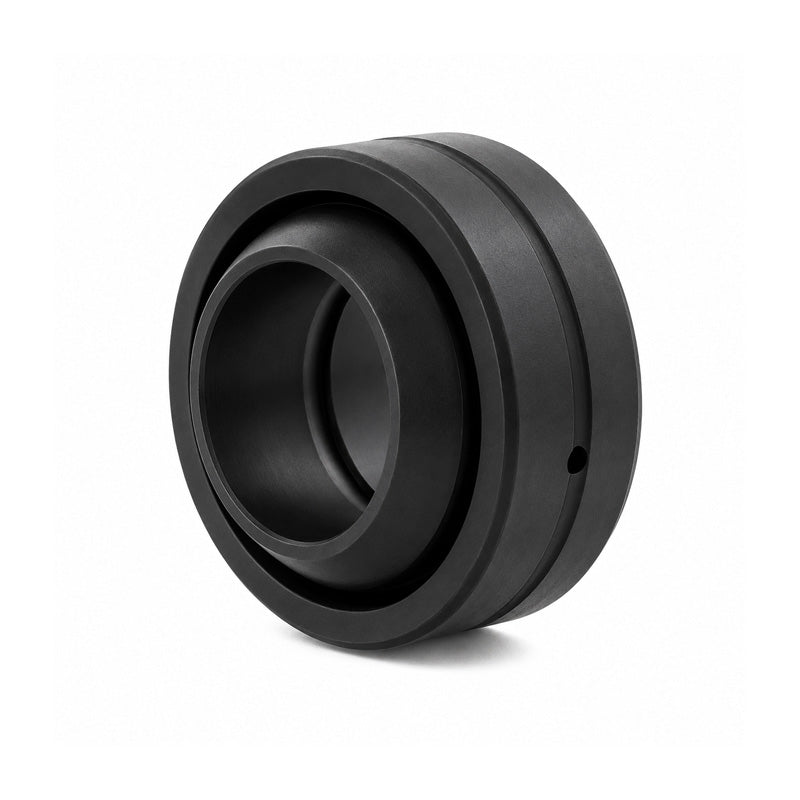

Durbal DGE50ES Maintenance Required Steel / Steel Spherical Plain Bearing 50x75x35mm
Durbal DGE50ES Maintenance Required Steel / Steel Spherical Plain Bearing 50x75x35mm
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 50mm
Technical
Technical
| d | 50mm |
|---|---|
| d1 | 55mm |
| D | 75mm |
| dk | 66mm |
| B | 35mm |
| C | 28mm |
| rs | 1mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 0.54kg |
| basic load rating dyn C | 156 kN |
| basic load rating stat Co | 780 kN |
| CN | 60-120 µm |
