SKU: DGE600ES-DURB

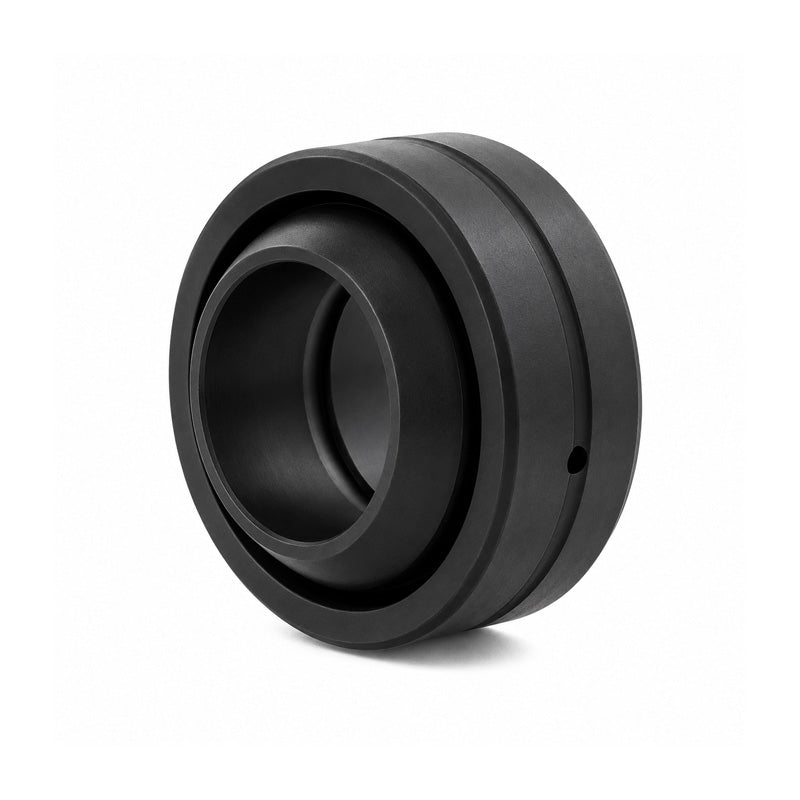

Durbal DGE600ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 600x800x272mm
Durbal DGE600ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 600x800x272mm
Equivalent to: GE600DO GE600ES
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 600mm
Technical
Technical
| d | 600mm |
|---|---|
| d1 | 644.9mm |
| D | 800mm |
| dk | 700mm |
| B | 272mm |
| C | 230mm |
| rs | 2mm |
| r1s | 5mm |
| tilt angle α | 3.6 deg |
| weight | 407kg |
| basic load rating dyn C | 13685 kN |
| basic load rating stat Co | 68425 kN |
| CN | 160-320 µm |
