SKU: DGE750ES-DURB

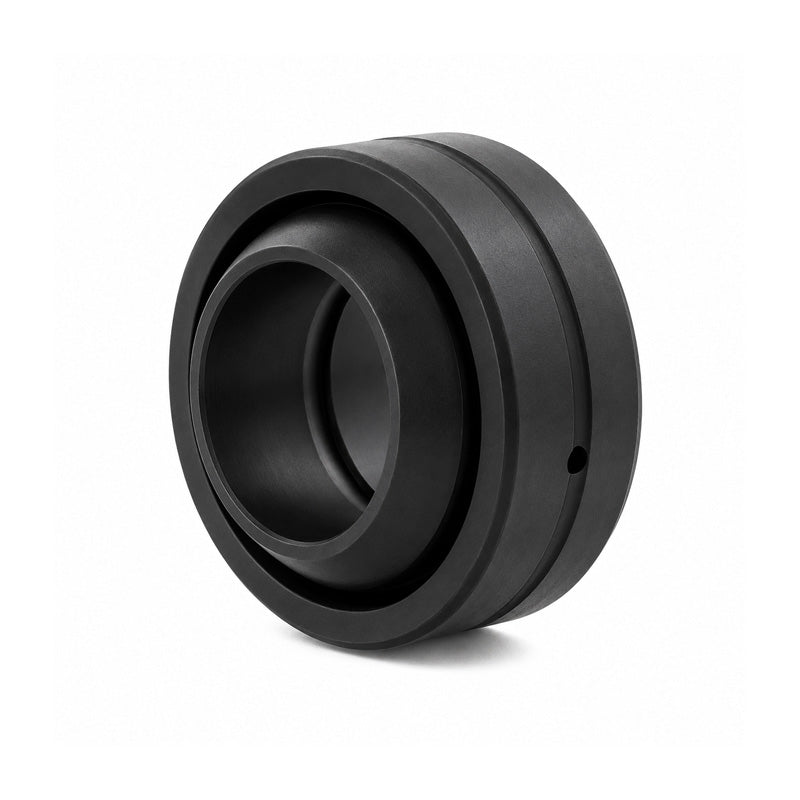

Durbal DGE750ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 750x1000x335mm
Durbal DGE750ES Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing 750x1000x335mm
Equivalent to: GE750DO GE750ES
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required XXL-Large-Radial-Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with oil groove and drill holes. For use with high static and alternating loads and for shock loads. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 750mm
Technical
Technical
| d | 750mm |
|---|---|
| d1 | 808.3mm |
| D | 1000mm |
| dk | 875mm |
| B | 335mm |
| C | 280mm |
| rs | 3mm |
| r1s | 6mm |
| tilt angle α | 3.8 deg |
| weight | 779kg |
| basic load rating dyn C | 20825 kN |
| basic load rating stat Co | 104125 kN |
| CN | 170-350 µm |
