SKU: DGK110SK-DURB

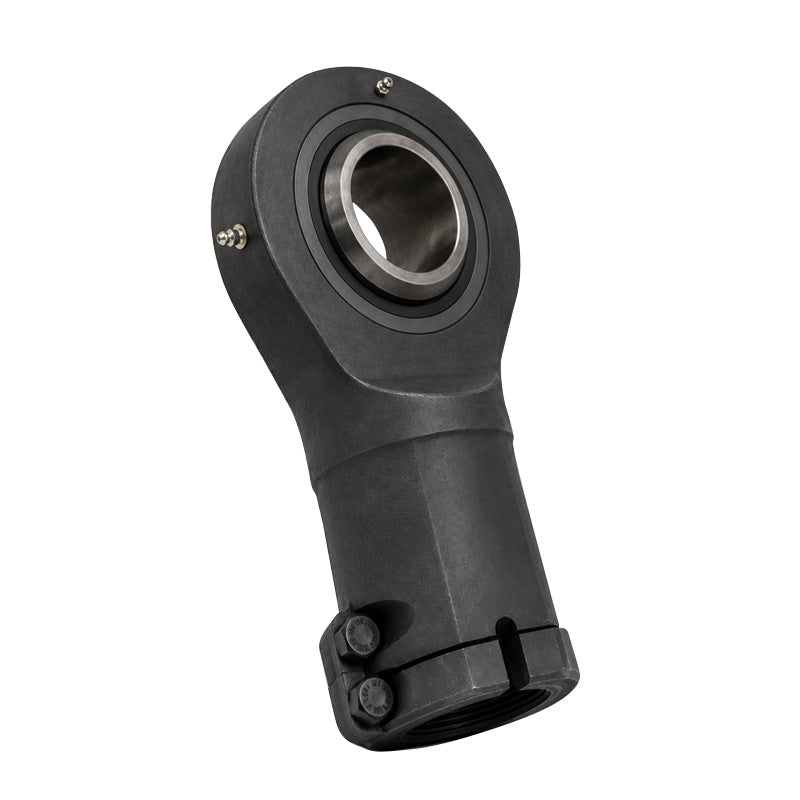

Durbal DGK110SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M120x4 Thread
Durbal DGK110SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M120x4 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M120x4
- Thread M / F:
- Female
- Inside Diameter:
- 90mm
Technical
Technical
| d | 110mm |
|---|---|
| d1 | 121.2mm |
| d2 | 264mm |
| d4 | 180mm |
| d5 | 210mm |
| dk | 140mm |
| G (Thread) | M120x4mm |
| B | 70mm |
| C1 | 70mm |
| C2 | 74mm |
| l3 | 160mm |
| l4 | 442mm |
| l7 | 115mm |
| h1 | 300mm |
| tilt angle α | 6 deg |
| weight | 44kg |
| basic load rating dyn C | 520 kN |
| basic load rating stat Co | 1640 kN |
| radial clearance CN | 8-165 µm |
