SKU: DGK140SK-DURB

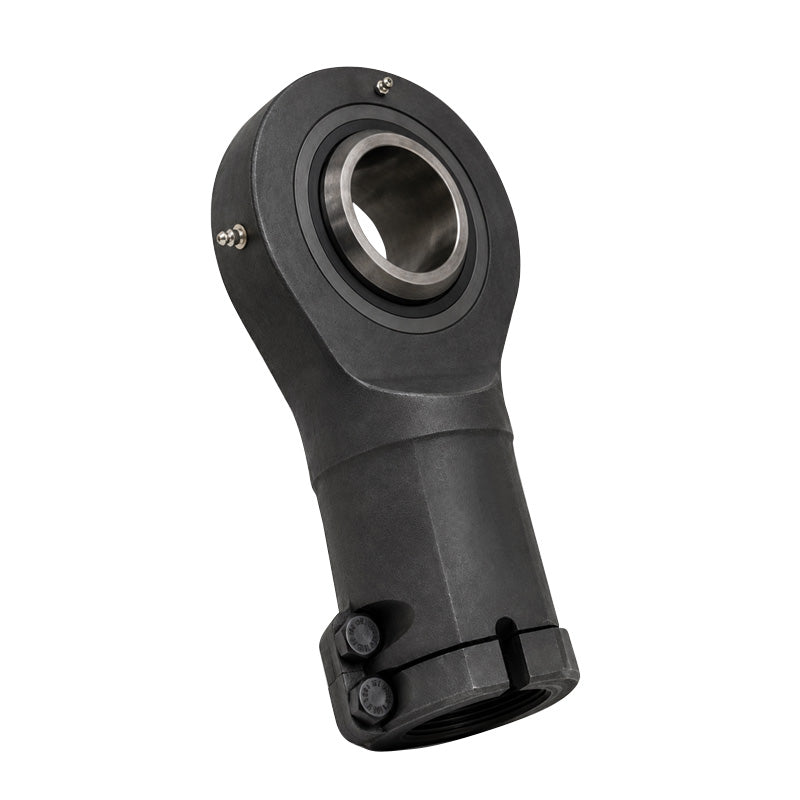

Durbal DGK140SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M160x4 Thread
Durbal DGK140SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M160x4 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M160x4
- Thread M / F:
- Female
- Inside Diameter:
- 110mm
Technical
Technical
| d | 140mm |
|---|---|
| d1 | 155.8mm |
| d2 | 380mm |
| d4 | 230mm |
| d5 | 256mm |
| dk | 180mm |
| G (Thread) | M160x4mm |
| B | 90mm |
| C1 | 90mm |
| C2 | 105mm |
| l3 | 210mm |
| l4 | 620mm |
| l7 | 185mm |
| h1 | 420mm |
| tilt angle α | 7 deg |
| weight | 160kg |
| basic load rating dyn C | 864 kN |
| basic load rating stat Co | 2680 kN |
| radial clearance CN | 8-192 µm |
