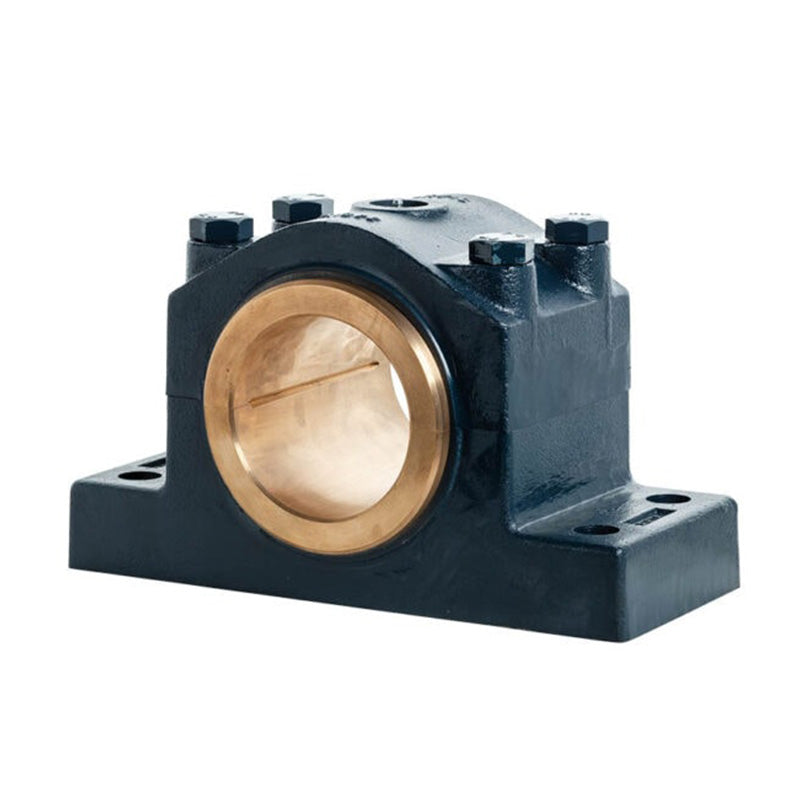

Major Brand DIN506-130M Heavy Duty Metric Split Cast Iron Four Bolt Pillow / Plummer Block Housing with 130mm Bore Gunmetal Bush Insert - Allow 3-4 Weeks

DIN506 Heavy Duty Plummer Block (4-Bolt): The DIN506 Series is a robust range of heavy-duty Plummer Blocks designed to deliver reliable shaft support in demanding industrial environments. Featuring a fully split cast iron housing and split gunmetal bearing, these units are built for strength, durability, and easy maintenance. Suitable for grease lubrication, the split design allows for fast and straightforward replacement of bearing shells without removing the housing, minimizing downtime and servicing effort. Engineered to European DIN standards, this range is available in a wide selection of bore sizes to accommodate shaft diameters from 55mm to 300mm (2" to 12"). The four-bolt mounting provides added stability for high-load applications. With precision construction and serviceable design, the DIN506 series is an ideal choice for heavy-duty applications where performance and ease of maintenance are critical.
Benefits: Easy to maintain, durable, heavy duty

Brand / Quality:

Major Brand - High Quality

Inside Diameter:

130mm

Style:

DIN506

Bolt Hole Centres:

330mm
