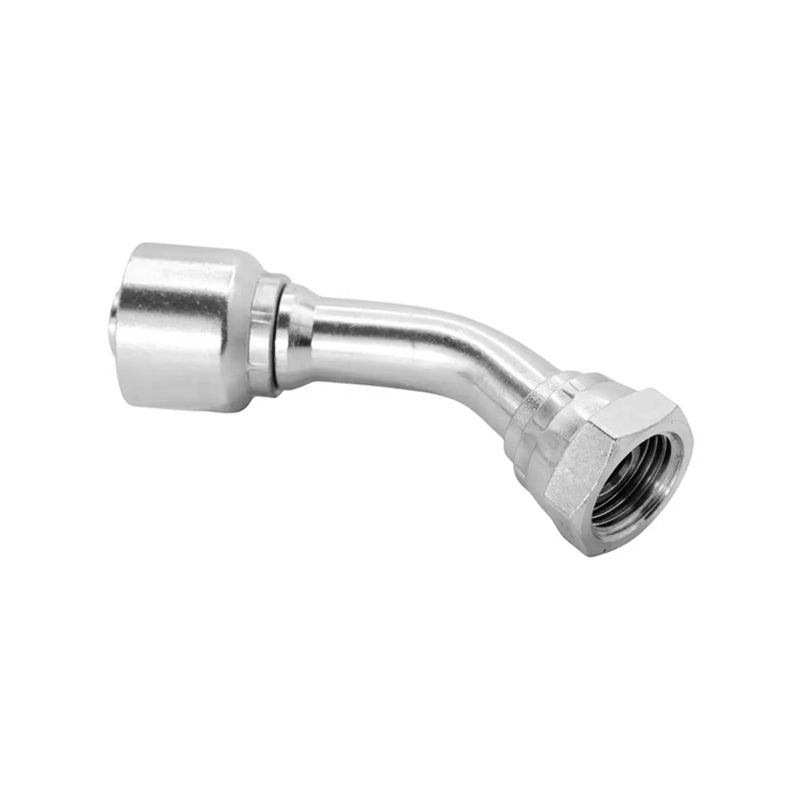

FLEXEQUIP 3/8 inch BSP Female One Piece Hose Fitting with 45 Degree Angle 60 Degree Cone and 22mm Crimp Nut - Allow 2-3 Days

FLEXEQUIP One Piece Female Hose Fittings with 45 Degree Angle and Crimp Nut: These hydraulic fittings are designed for secure and leak-free connections in hydraulic systems. The BSP refers to the British Standard Pipe thread size, commonly used in hydraulic and pneumatic applications. As a one-piece hose fitting, it simplifies installation by eliminating the need for separate components like inserts or ferrules. The fitting features a 45-degree angle, ideal for routing hoses in tight spaces. The 60-degree cone provides a reliable sealing surface to ensure a secure, high-pressure seal, essential for preventing fluid leakage. The crimp nut allows for easy tightening, ensuring a strong and durable connection through a firm, crimped bond.
Benefits: Leak-free connections, simplified installation, secure and durable connections

Brand / Quality:

FLEXEQUIP - High Quality

Thread Size:

3/8 inch BSP

Length:

69mm

Angle:

45 degrees

Cone Angle:

60 degrees
