SKU: DL45/24-24X46X24.5

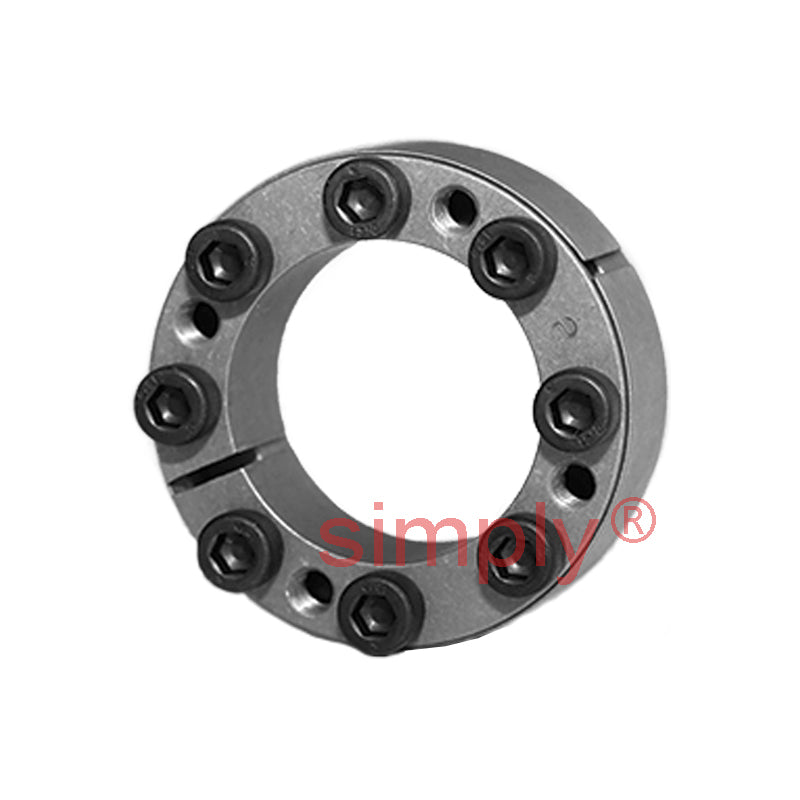

Major Branded DL45/24 Steel DRIVELOCK Bush 24x46x24.5mm - Allow 2-3 Days
- Regular price
- €25.06 ex VAT
- Sale price
- €25,06
- Regular price
-
Quantity Price Breaks
Major Branded DL45/24 Steel DRIVELOCK Bush 24x46x24.5mm - Allow 2-3 Days
- Regular price
- €25.06 ex VAT
- Sale price
- €25,06
- Regular price
-
Description
DRIVELOCK 45 Bushes: These bushes are designed for applications requiring medium torque handling, with capabilities ranging from 190 to 4,800 Nm. These bushes are not self-centering, making them suitable for setups where alignment is managed by other means. They accommodate bore sizes from 18mm to 80mm, with options for imperial sizes available upon request. The DRIVELOCK 45 Bushes offer reliable performance and durability, providing a strong connection in various machinery and equipment applications where precise alignment is ensured through alternative methods.
Benefits: Medium torque handling, robust Design for non-self-centering applications, versatility in bore sizes

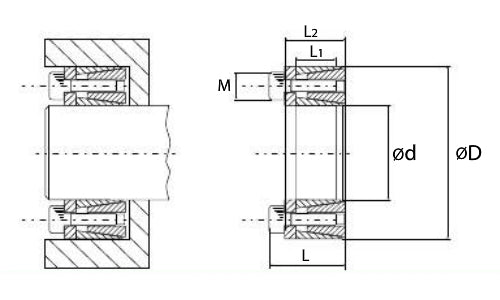

Technical
| Material | = | Steel |
| d (h8) | = | 24mm |
| D | = | 46mm |
| L2 | = | 18.5mm |
| L | = | 24.5mm |
| L1 | = | 12mm |
| M (screws) | = | M6 |
| Ts | = | 12 Nm |
| T | = | 290 Nm |
| F | = | 250 kN |
| p | = | 120 N/mm2 |
| Shaft | = | h8 |
| Hub | = | H8 |
| Weight Kg | = | 0.25 kg |
