SKU: E-PF-TRB-3.1/4-TIMKEN

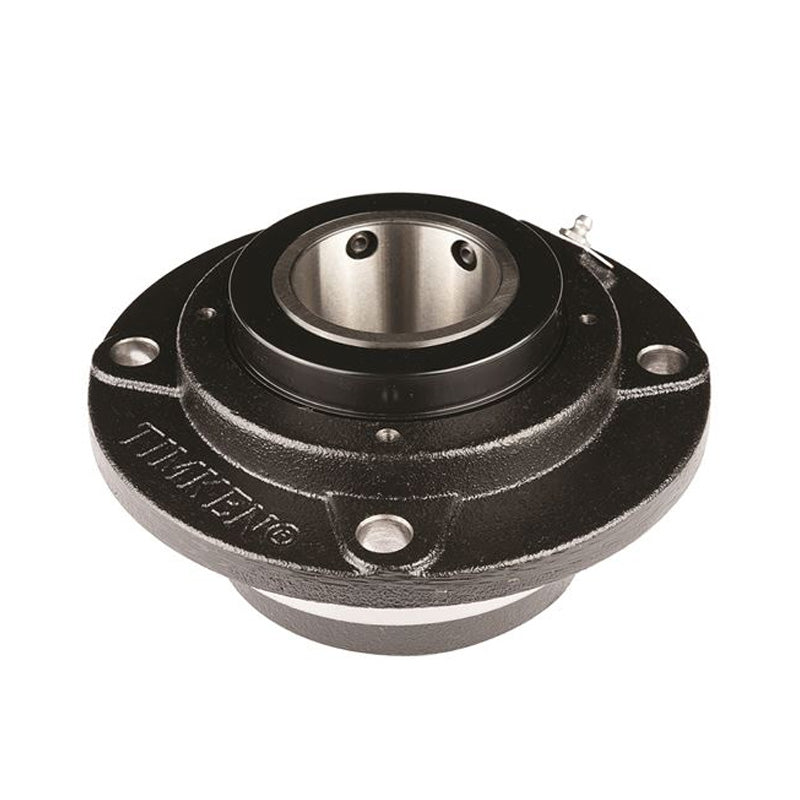

TIMKEN E-PF-TRB-3-1/4 Mounted Taper Roller Four Bolt Round Pilot Flanged Housing for 3-1/4 inch Shafts
TIMKEN E-PF-TRB-3-1/4 Mounted Taper Roller Four Bolt Round Pilot Flanged Housing for 3-1/4 inch Shafts
Equivalent to: 23140 FC-E-304R 20-06-0304 19331304
Out of stock
Description
Description
- Brand / Quality:
- TIMKEN - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- EPFTRB
- Pitch Circle Diameter:
- 219.08mm = 8.625 (8-5/8) inch
Technical
Technical
| Shaft Size | 3-1/4 inch |
|---|---|
| B | 5 inch |
| H | 10-1/4 inch |
| A | 4-3/16 inch |
| N2 | 6-3/32 inch |
| J | 8-5/8 inch |
| A3 | 1-1/4 inch |
| Bolt dia | 3/4 inch |
| E | 2-7/16 inch |
| A<sup>1</sup> | 15/16 inch |
| D<sup>1</sup> | 7-3/8 inch |
| D1 | 5-17/32 inch |
| A2 | 1-11/16 inch |
| Approx weight. lbs | 43 |
| Approx weight. kg | 19.50 |
