SKU: EAL35D2RS-FLURO

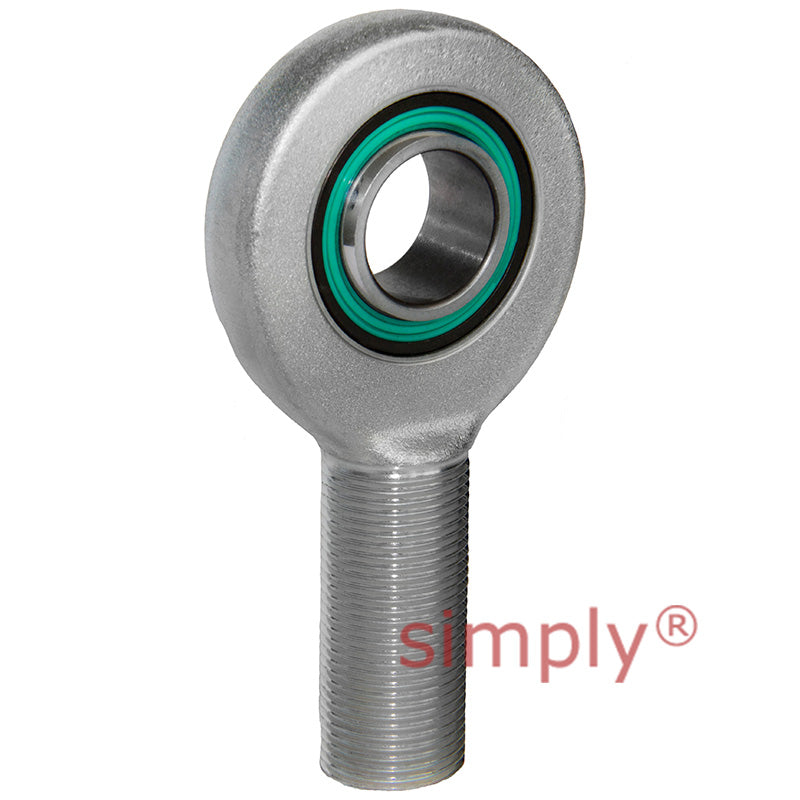

Fluro EAL35D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M36x3 Thread
Fluro EAL35D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M36x3 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D (-2RS) Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with maintenance free Spherical Plain Bearings. For use at high unidirectional loads and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M36x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 36x3mm
- Inside Diameter:
- 35mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 35mm |
|---|---|
| B | 25mm |
| M | 21mm |
| A | 82mm |
| F | 140mm |
| L | 181mm |
| O | 39.8mm |
| Thread Size G | M36x3 |
| GL | 82mm |
| Static Load Co | 144kN |
| Dynamic Load | 140kN |
| Approx weight | 1.4kg |
