SKU: EAL45DNIRO-FLURO

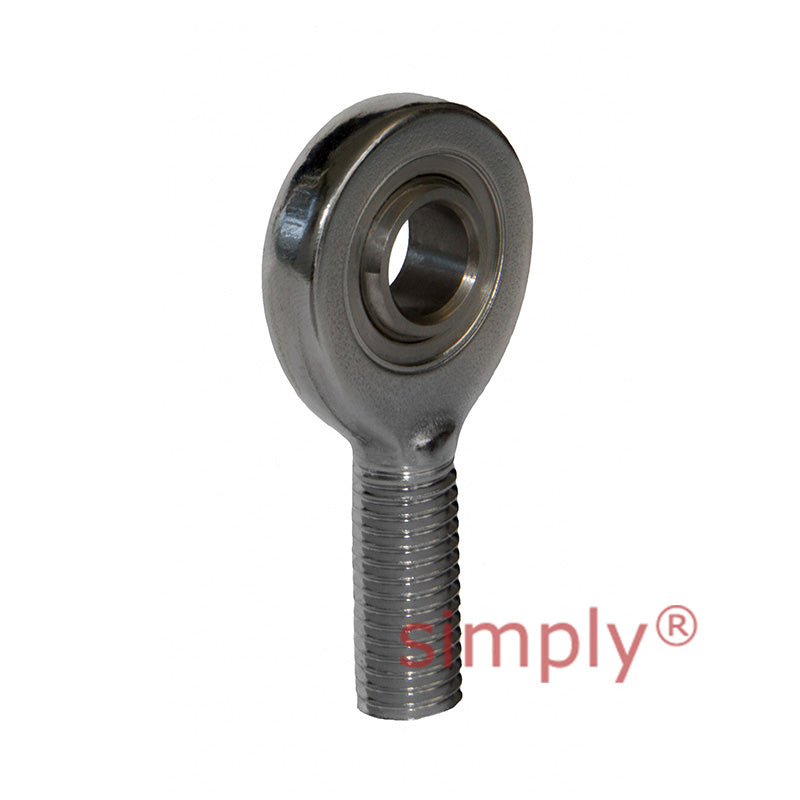

Fluro EAL45DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M42x3 Thread
Fluro EAL45DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M42x3 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D-NIRO Series Stainless Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread, maintenance free, made from stainless steel with maintenance free Spherical Plain Bearings GE..EC-NIRO. For use at high unidirectional loads, in corrosive environments and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M42x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 42x3mm
- Inside Diameter:
- 45mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 45mm |
|---|---|
| B | 32mm |
| M | 27mm |
| A | 102mm |
| F | 163mm |
| L | 214mm |
| O | 50.8mm |
| Thread Size G | M42x3 |
| GL | 94mm |
| Static Load Co | 178kN |
| Dynamic Load | 247kN |
| Approx weight | 2.61kg |
