SKU: EALM-12.F

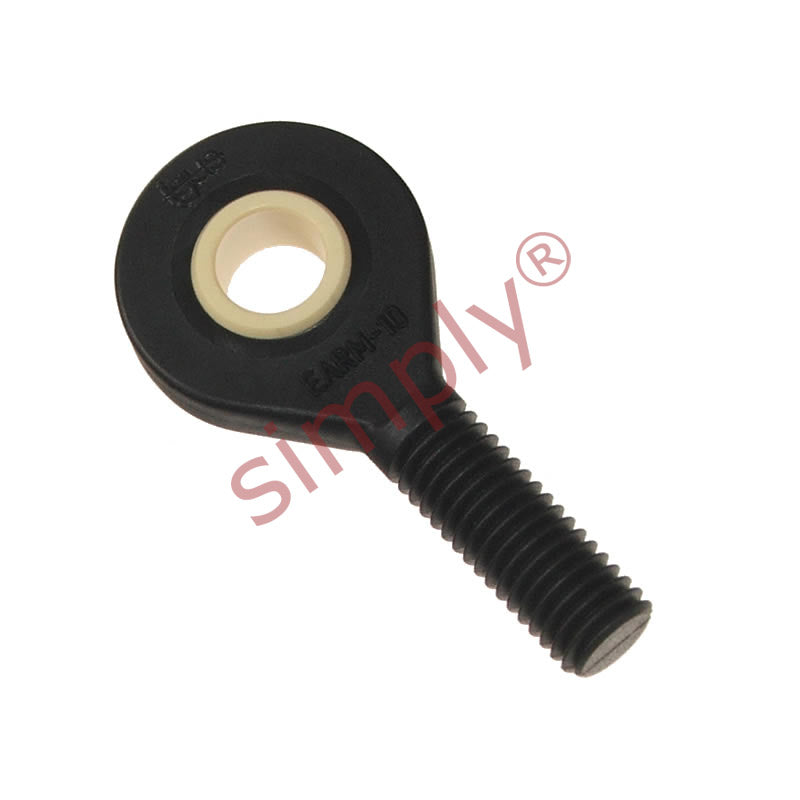

igubal EALM12F Left Hand Male Plastic Rod End 12mm Bore M12x1.25 Thread - Allow 2-3 Days
igubal EALM12F Left Hand Male Plastic Rod End 12mm Bore M12x1.25 Thread - Allow 2-3 Days
Regular price
€17,05
ex VAT
Regular price
Sale price
€17,05
ex VAT
In stock
Price Break
4+
€12,96
9+
€12,23
19+
€12,09
29+
€11,94
39+
€11,80
49+
€11,65
59+
€10,92
69+
€10,78
79+
€10,63
89+
€10,48
99+
€10,19
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EALM_DESC
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M12x1.25
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
Technical
Technical
| d1 | 12mm |
|---|---|
| d2 | 34mm |
| d3 | M12x1.25 |
| C1 | 8mm |
| B | 10mm |
| h | 54mm |
| l1 | 29mm |
| l2 | 71mm |
| Max pivot angle | 21° |
| Max static tensile strength (short term) | 3100 N |
| Max static tensile strength (long term) | 1550 N |
| Max radial load (short term) | 300 N |
| Max radial load (long term) | 150 N |
| Min thread depth | 20mm |
| Max torque outside thread | 6 Nm |
| Max torque through ball | 25 Nm |
| Weight | 14.3 g |
