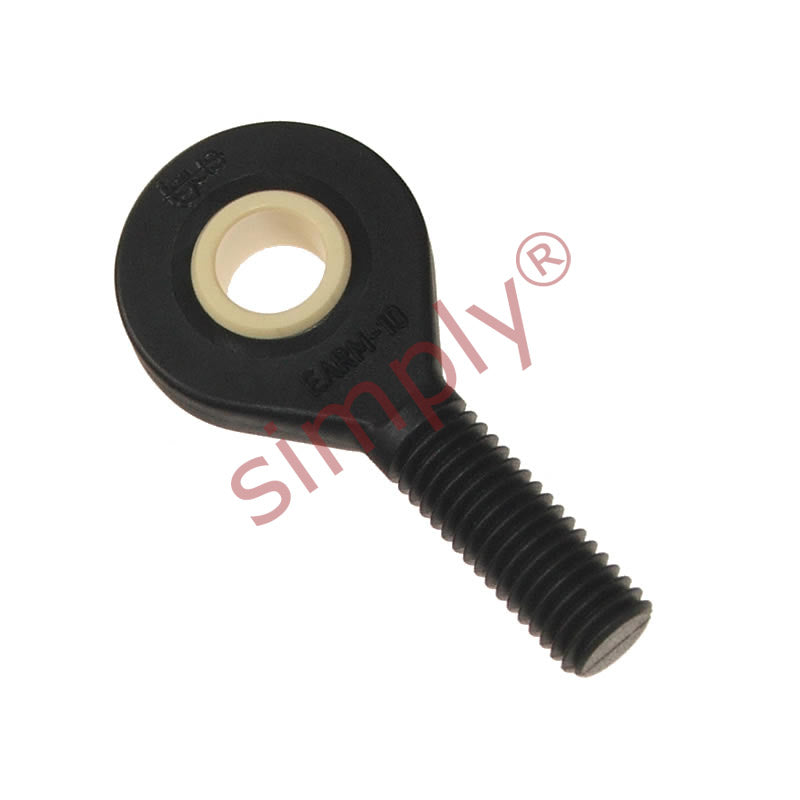

• igubal EALM25 Left Hand Male Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days
1 1

SKU: EALM-25

igubal EALM25 Left Hand Male Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days

igubal EALM25 Left Hand Male Plastic Rod End 25mm Bore M24x2 Thread - Allow 2-3 Days
€27,81 ex VAT
€27,81 ex VAT
Sale Sold out

In stock

Price Break
4+ €21,14
9+ €19,95
19+ €19,71
29+ €19,48
39+ €19,24
49+ €19,00
59+ €17,81
69+ €17,58
79+ €17,34
89+ €17,10
99+ €16,63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EALM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M24x2
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
25mm
Technical
d1 25mm
d2 64mm
d3 M24x2
C1 17mm
B 20mm
h 97mm
l1 53mm
l2 129mm
Max pivot angle 16°
Max static tensile strength (short term) 7000 N
Max static tensile strength (long term) 3500 N
Max radial load (short term) 1000 N
Max radial load (long term) 500 N
Min thread depth 37mm
Max torque outside thread 45 Nm
Max torque through ball 55 Nm
Weight 94.8 g
