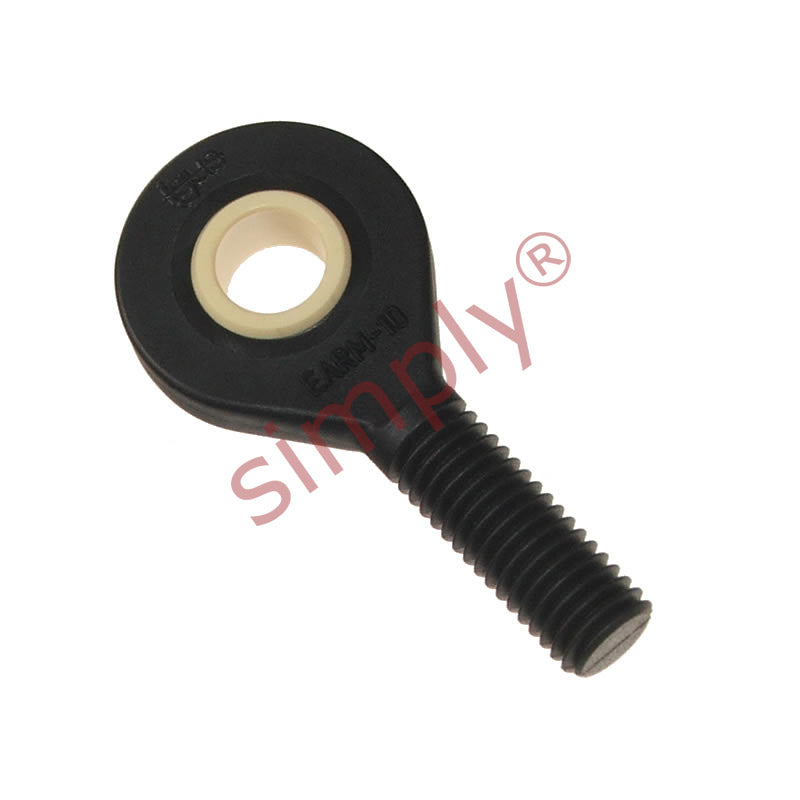

• igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread
1 1

SKU: EARM-10

igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread

igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread
€16,18 ex VAT
€16,18 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,30
9+ €11,61
19+ €11,47
29+ €11,34
39+ €11,20
49+ €11,06
59+ €10,37
69+ €10,23
79+ €10,09
89+ €9,95
99+ €9,68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EARM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M10
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
10mm
Technical
d1 10mm
d2 29mm
d3 M10
C1 7mm
B 9mm
h 47.5mm
l1 27mm
l2 62mm
Max pivot angle 24°
Max static tensile strength (short term) 2600 N
Max static tensile strength (long term) 1300 N
Max radial load (short term) 250 N
Max radial load (long term) 125 N
Min thread depth 19mm
Max torque outside thread 5 Nm
Max torque through ball 14 Nm
Weight 8.4 g
