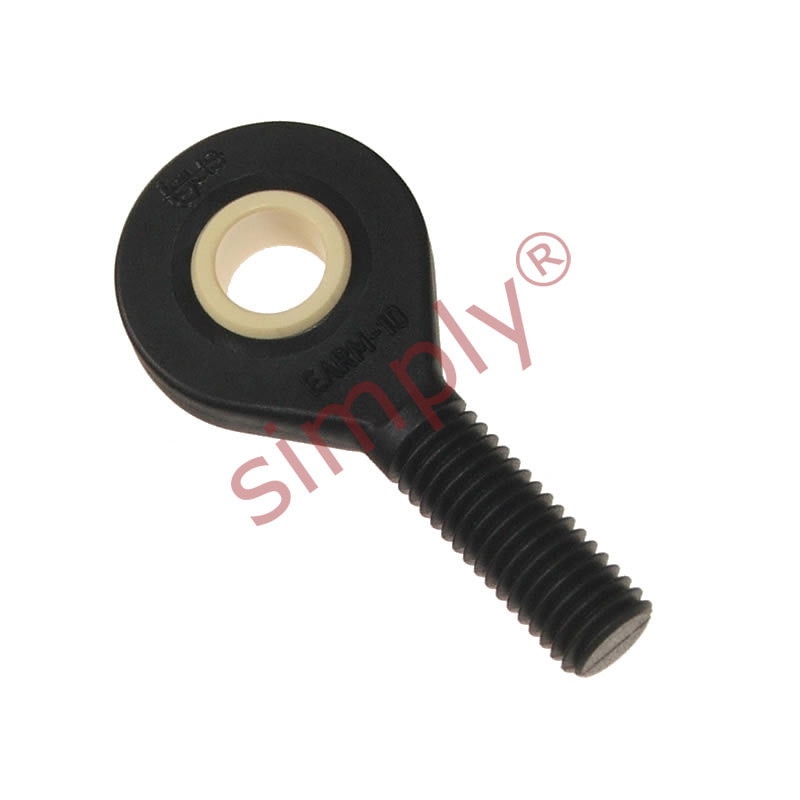

• igubal EARM12 Right Hand Male Plastic Rod End 12mm Bore M12 Thread
1 1

SKU: EARM-12

igubal EARM12 Right Hand Male Plastic Rod End 12mm Bore M12 Thread

igubal EARM12 Right Hand Male Plastic Rod End 12mm Bore M12 Thread
€17,05 ex VAT
€17,05 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,96
9+ €12,23
19+ €12,09
29+ €11,94
39+ €11,80
49+ €11,65
59+ €10,92
69+ €10,78
79+ €10,63
89+ €10,48
99+ €10,19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EARM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M12
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
12mm
Technical
d1 12mm
d2 34mm
d3 M12
C1 8mm
B 10mm
h 54mm
l1 29mm
l2 71mm
Max pivot angle 21°
Max static tensile strength (short term) 3100 N
Max static tensile strength (long term) 1550 N
Max radial load (short term) 300 N
Max radial load (long term) 150 N
Min thread depth 20mm
Max torque outside thread 6 Nm
Max torque through ball 25 Nm
Weight 14.3 g
