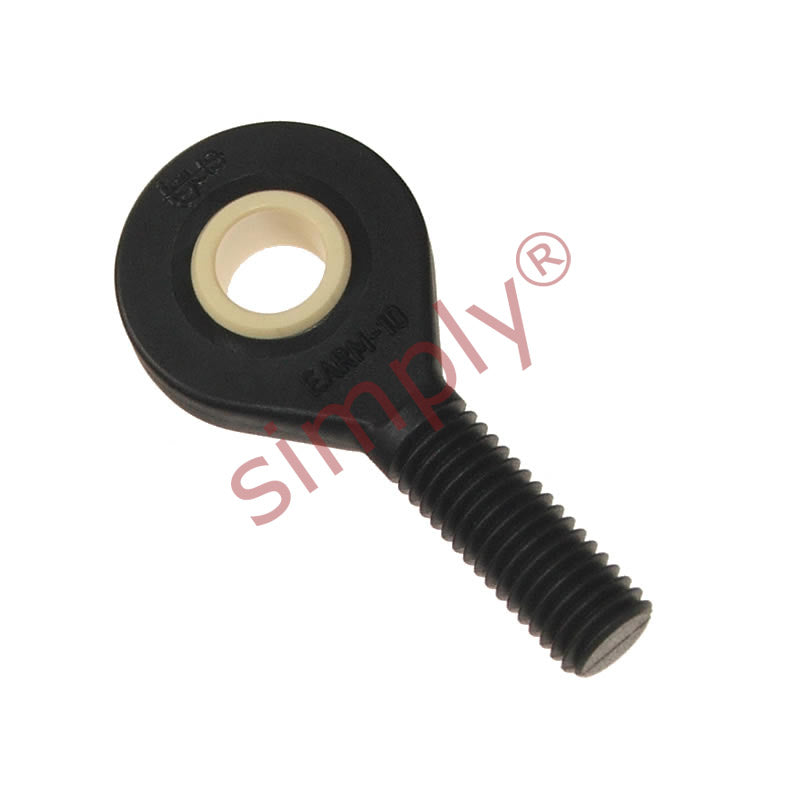

• igubal EARM20 Right Hand Male Plastic Rod End 20mm Bore M20x1.5 Thread
1 1

SKU: EARM-20.FINE

igubal EARM20 Right Hand Male Plastic Rod End 20mm Bore M20x1.5 Thread

igubal EARM20 Right Hand Male Plastic Rod End 20mm Bore M20x1.5 Thread
€20,45 ex VAT
€20,45 ex VAT
Sale Sold out

In stock

Price Break
4+ €15,54
9+ €14,67
19+ €14,49
29+ €14,32
39+ €14,14
49+ €13,97
59+ €13,09
69+ €12,92
79+ €12,75
89+ €12,57
99+ €12,22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EARM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
20mm
Technical
d1 20mm
d2 53mm
d3 M20x1.5
C1 13mm
B 16mm
h 80mm
l1 43mm
l2 106.5mm
Max pivot angle 16°
Max static tensile strength (short term) 6800 N
Max static tensile strength (long term) 3400 N
Max radial load (short term) 1700 N
Max radial load (long term) 850 N
Min thread depth 30mm
Max torque outside thread 25 Nm
Max torque through ball 40 Nm
Weight 57.3 g
