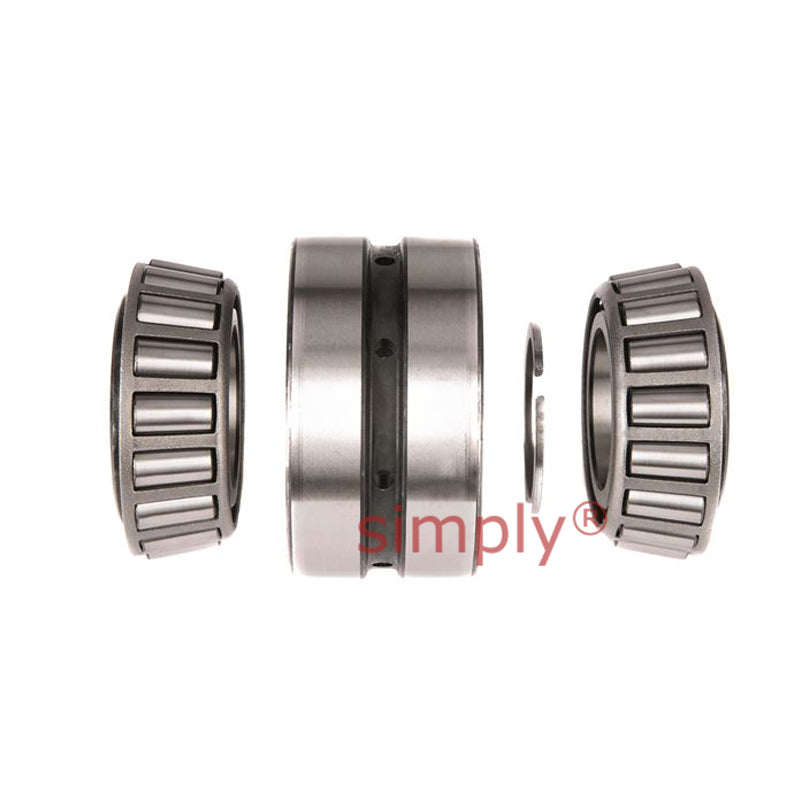

Timken EE126098/126151CD/X1S126098 TDO Double Outer Race Taper Roller Bearing 9.813x15x6.75x5 inch
Timken EE126098/126151CD/X1S126098 TDO Double Outer Race Taper Roller Bearing 9.813x15x6.75x5 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 249.25mm = 9.813 inch
- Outside Diameter:
- 381.00mm = 15 inch
- Width:
- 171.45mm = 6.75 inch
Technical
Technical
| d | 249.25mm = 9.813 inch |
|---|---|
| D | 381mm = 15 inch |
| T | 171.45mm = 6.75 inch |
| C | 127mm = 5 inch |
| Dynamic (1) C1 | 1550000N |
| Factors (5) e | 0.52 |
| Factors (5) Y1 | 1.31 |
| Factors (5) Y2 | 1.95 |
| Dynamic (2) C90 | 231000N |
| Dynamic (2) Ca90 | 204000N |
| Dynamic (2) C90(2) | 402000N |
| Factors (5) K | 1.13 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 279mm = 10.98 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 358mm = 14.09 inch |
| Pin Ka | 28.4mm = 1.12 inch |
| Pin Kb | 11.7mm = 0.46 inch |
| G1 | 1320 |
| G2 | 169 |
| Cg | 0.164 |
