SKU: EE234160/234221D/X3S234160-TIM

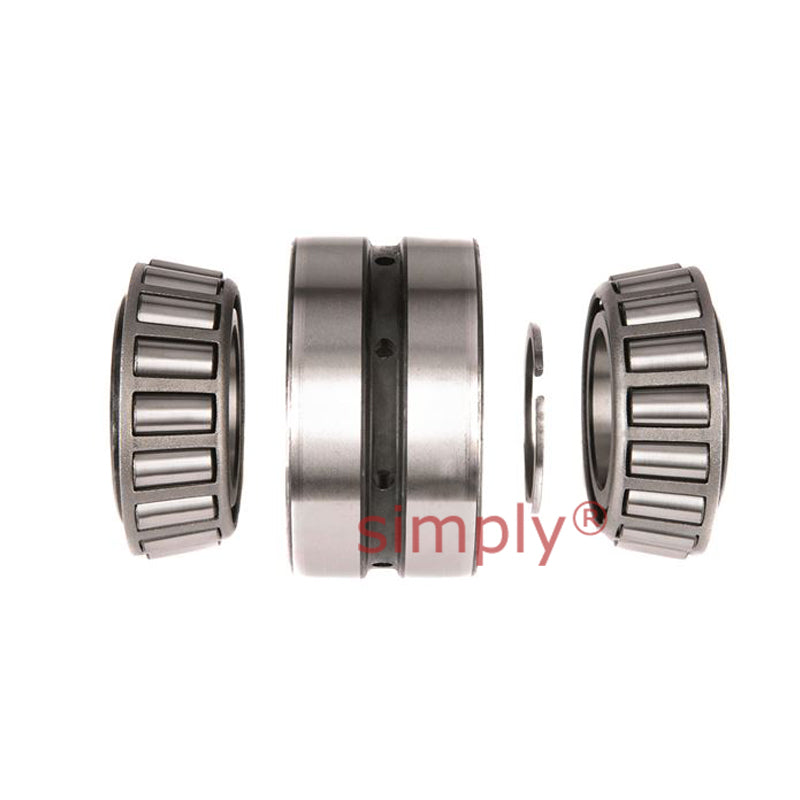

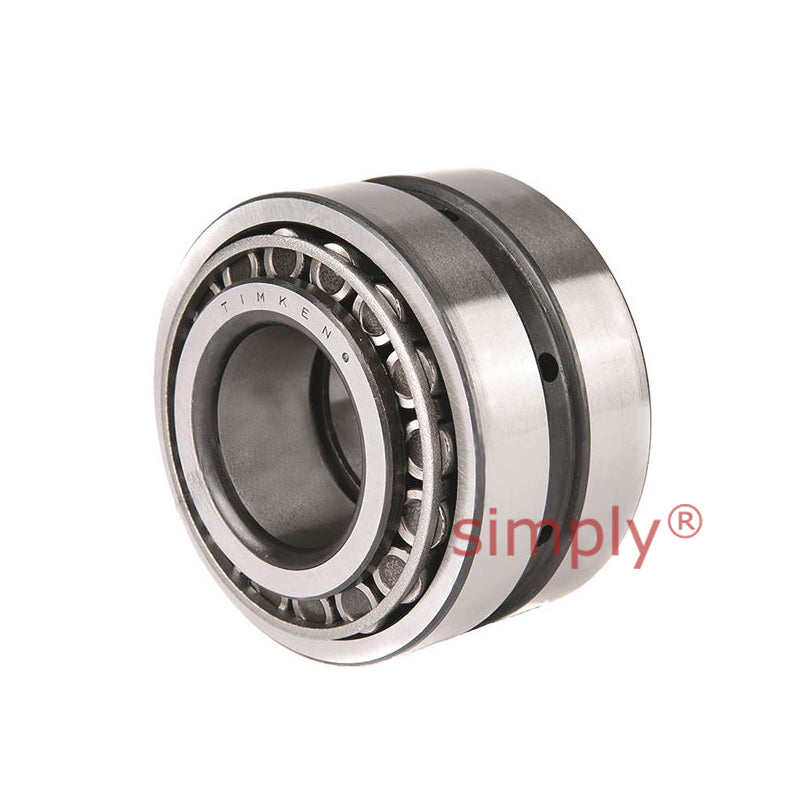

Timken EE234160/234221D/X3S234160 TDO Double Outer Race Taper Roller Bearing 16x22x5.75x4.125 inch
Timken EE234160/234221D/X3S234160 TDO Double Outer Race Taper Roller Bearing 16x22x5.75x4.125 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 406.40mm = 16 inch
- Outside Diameter:
- 558.80mm = 22 inch
- Width:
- 146.05mm = 5.75 inch
Technical
Technical
| d | 406.4mm = 16 inch |
|---|---|
| D | 558.8mm = 22 inch |
| T | 146.05mm = 5.75 inch |
| C | 104.775mm = 4.125 inch |
| Dynamic (1) C1 | 1620000N |
| Factors (5) e | 0.48 |
| Factors (5) Y1 | 1.42 |
| Factors (5) Y2 | 2.11 |
| Dynamic (2) C90 | 241000N |
| Dynamic (2) Ca90 | 196000N |
| Dynamic (2) C90(2) | 419000N |
| Factors (5) K | 1.23 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 435mm = 17.13 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 515.5mm = 20.3 inch |
| G1 | 2780 |
| G2 | 448 |
| Cg | 0.2018 |
