SKU: EGLM-08

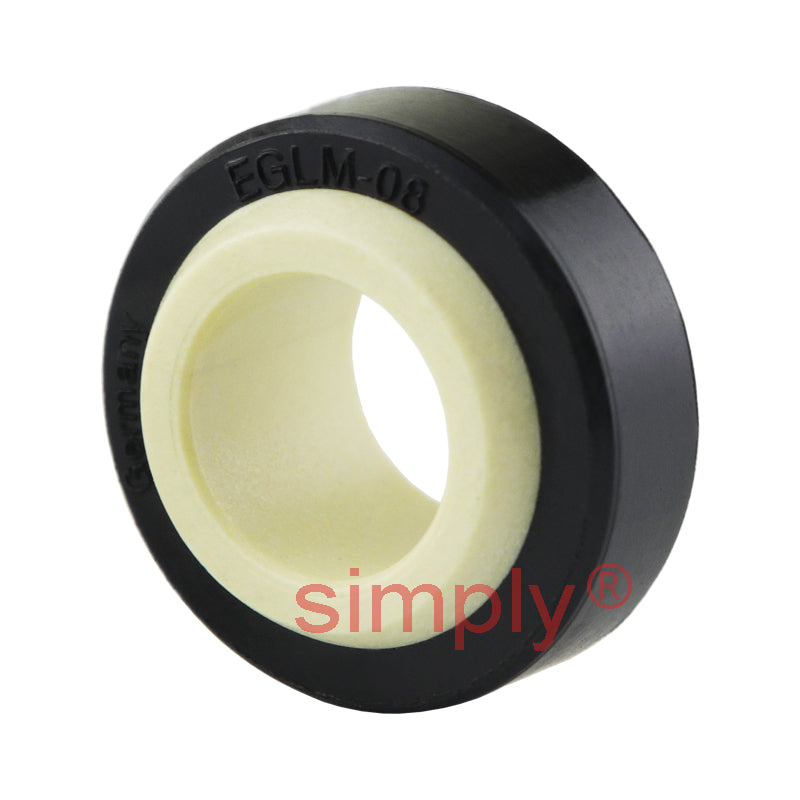

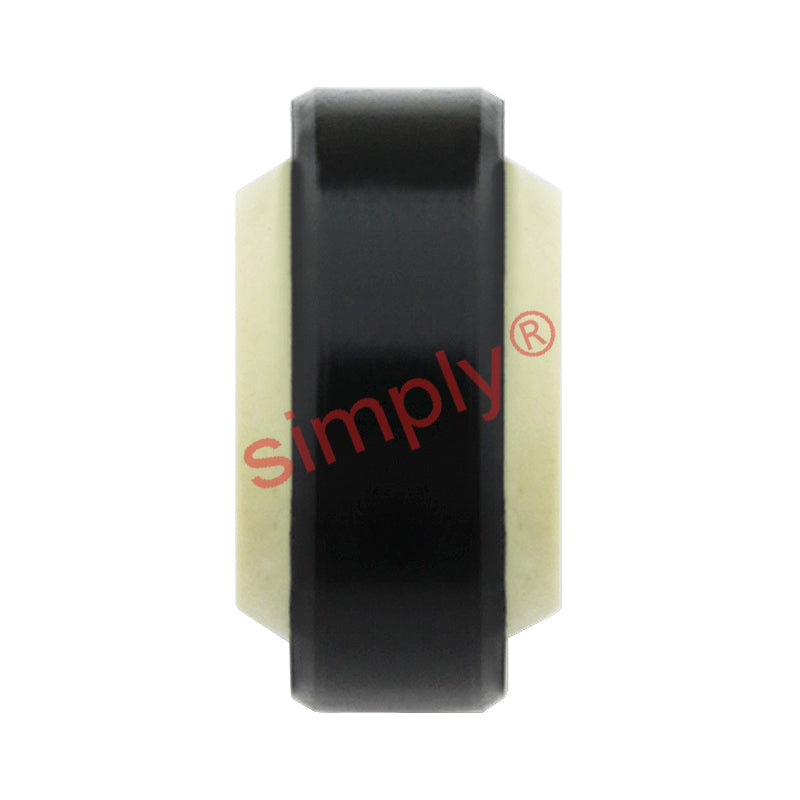

Igus EGLM08 Spherical Plain Bearing 8x16x8mm
Igus EGLM08 Spherical Plain Bearing 8x16x8mm
Regular price
€17,78
ex VAT
Regular price
Sale price
€17,78
ex VAT
In stock
Price Break
5+
€13,51
9+
€12,75
29+
€12,60
49+
€12,45
99+
€12,30
199+
€12,14
299+
€11,39
399+
€11,23
499+
€11,08
749+
€10,93
999+
€10,63
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EGLM Spherical Plain Bearings: These bearings are commonly used in the food industry, automotive industry, railway technology or plant construction. These bearings are popular due to the following reasons; high axial and radial loads, easy to install, great chemical resistance, cost-effective and the ability to adjust misalignments.
Benefits: Compensation of misalignment and edge loads, corrosion-resistant, suitable for rotating, oscillating and axial movements.
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 8mm
Technical
Technical

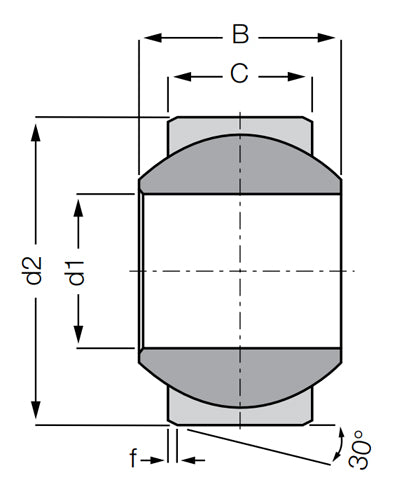

| d1 | 8mm |
|---|---|
| d2 | 16mm |
| B | 8mm |
| C | 5mm |
| f | 0.5mm |
| Max Static Compressive Strength (Radial) | 303 lbs |
| Max Static Compressive Strength (Axial) | 39 lbs |
| Max Torque Through Ball | 5.2 ft lbs |
| Max Pivot Angle | 24 deg |
| Weight | 0.001 kg |
