SKU: EMN17-20-501-DURB

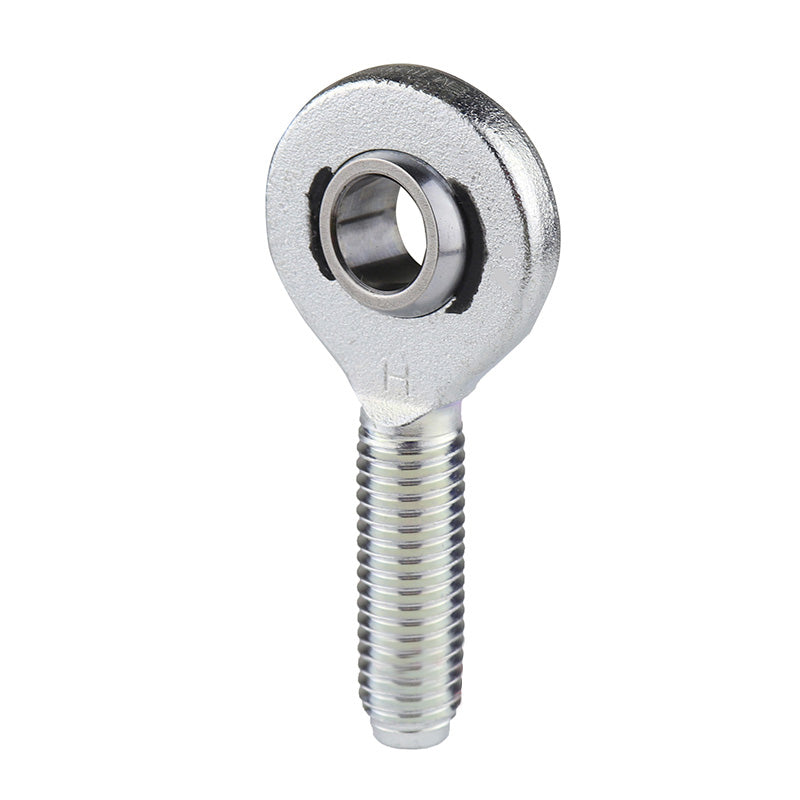

Durbal EMN17-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M16 Thread
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
In stock
Quantity Price Breaks
10
€38.80
19
€36.62
29
€36.19
39
€35.75
49
€35.32
74
€34.88
99
€32.70
199
€32.26
249
€31.83
499
€31.39
999
€30.52
SKU:
EMN17-20-501-DURB
Durbal EMN17-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M16 Thread
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Technical
| Thread Direction | = | -501 (Right) |
| d | = | 17mm |
| G (Thread) | = | M16mm |
| B | = | 14mm |
| C1 | = | 10mm |
| h | = | 69mm |
| d1 | = | 20mm |
| d2 | = | 44mm |
| dk | = | 25mm |
| l1 | = | 40mm |
| l2 | = | 91mm |
| l7 | = | 23mm |
| tilt angle & | = | alpha |
| = | 10 deg | |
| weight | = | 0.19kg |
| basic load rating dyn C | = | 19.2 kN |
| basic load rating stat Co | = | 45 kN |
| radial clearance CN | = | 40-82 & |
| micro | = | m |
