SKU: ESEHE206-SNR

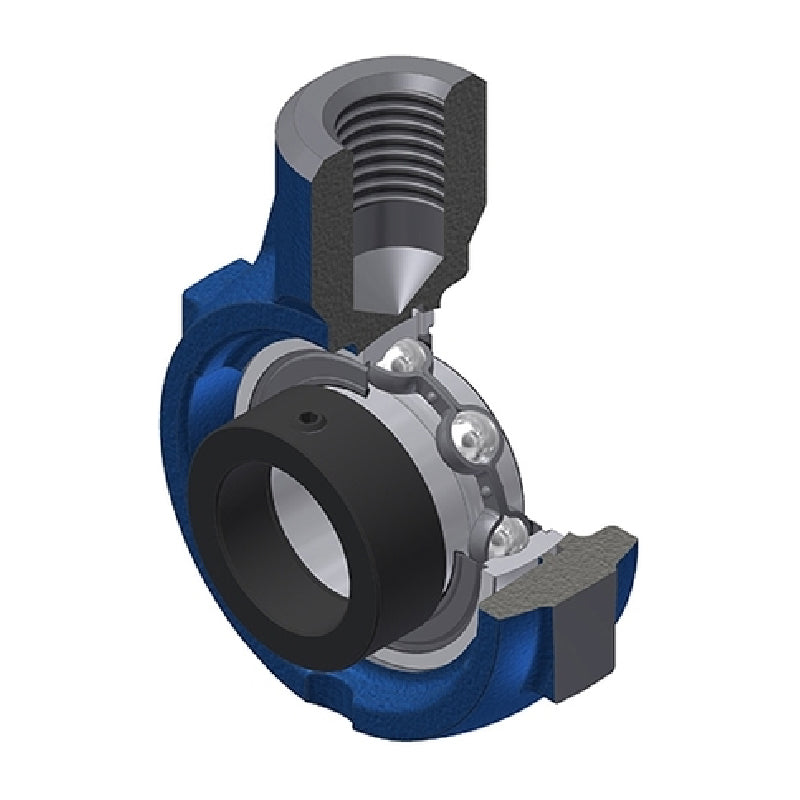

SNR ESEHE206 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 30mm Bore
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
In stock
Quantity Price Breaks
3
€30.72
4
€29.00
9
€28.65
19
€28.31
49
€27.96
99
€27.62
499
€25.89
999
€25.54
1999
€25.20
2999
€24.85
4999
€24.16
SKU:
ESEHE206-SNR
SNR ESEHE206 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 30mm Bore
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

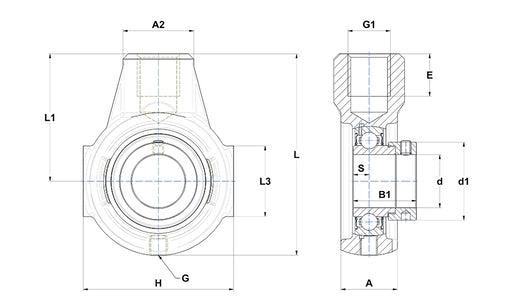

| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 32mm |
| A2 | = | 40mm |
| B1 | = | 35.7mm |
| d1 | = | 44.1mm |
| E | = | 24mm |
| H | = | 85mm |
| L | = | 114mm |
| L1 | = | 72mm |
| L3 | = | 40mm |
| S | = | 9mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.03 kg |
